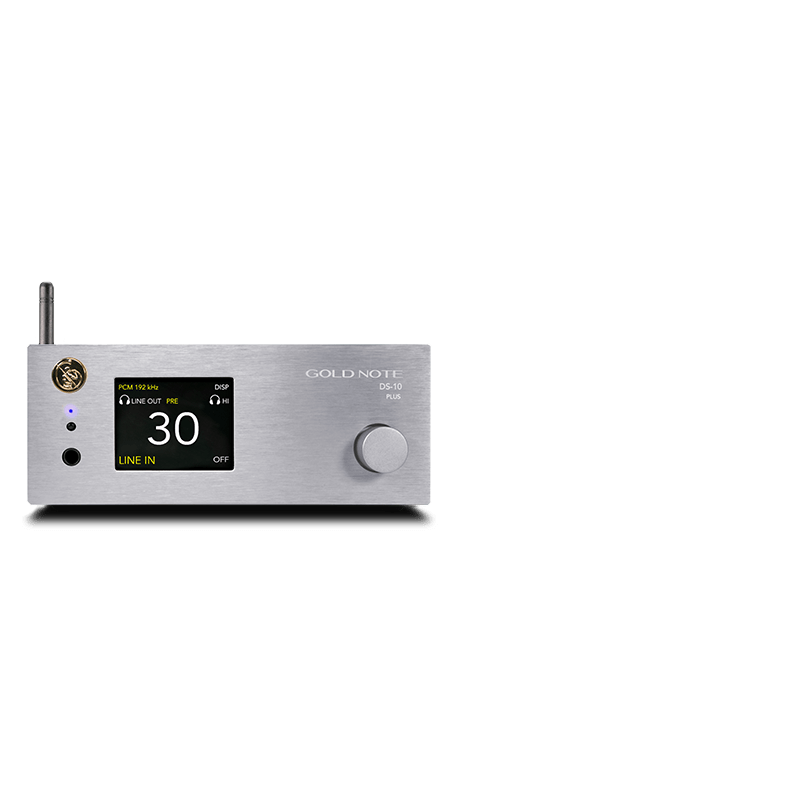

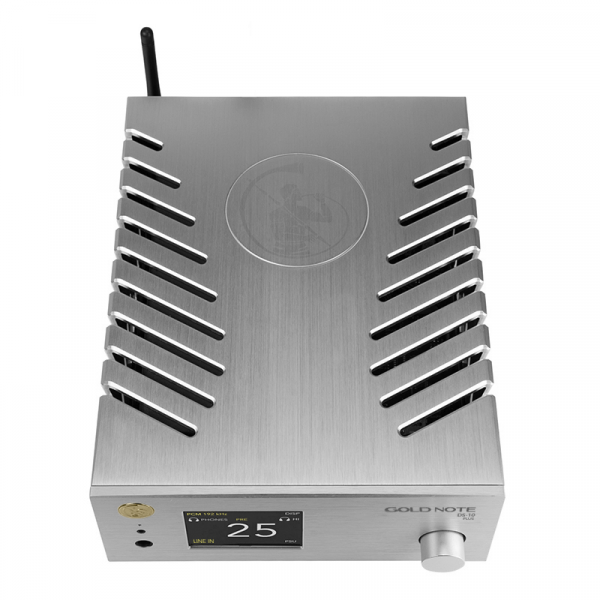

GOLD NOTE DS-10 PLUS

Color: Silver
  • CONTACT US FOR A QUOTATION
  • Product Request


    GOLD NOTE DS-10 PLUS

    GOLD NOTE DS-10 PLUS

    do not include special characters

    * Required fields

    Cancel

    BEST PRICE ONLINE

    master card visa paypal bonifico bancario soisy scalapay

    GARANZIA UFFICIALE
    Assistenza italiana
    TRASPORTO TRACCIATO
    Spedizione monitorata
    ASSISTENZA DIRETTA
    Consulenza e preventivi

    Related products

    The DS-10 is a versatile state-of-the-art streaming DAC designed for the contemporary audiophile. The technology of the DS-10 is brilliantly enclosed in a compact-sized aluminium chassis and it’s the perfect addition to a modern High-End audio system. The DS-10 PLUS is also equipped with a 3.5 mm jack analogue input and a completely analogue stage, a perfect preamplifier for analogue and digital sources.

     A COMPLETE AUDIO SOURCE: STREAMING D/A CONVERTER WITH HEADPHONE OUTPUT, LINE PREAMPLIFIER AND ANALOGUE INPUT

    The DS-10 PLUS is a 4-in-1 digital source that features a UPnP-DLNA Streamer, High-End D/A Converter, Line Preamplifier and Headphone Amplifier. Inspired by our acclaimed IS-1000 All-In-One unit, it combines its extended connectivity features with the exceptional high-resolution of the Bluetooth 5.0 – for the first time ever on a High-End audio product – and the impressive headphone double power GAIN output. The DS-10 PLUS is also equipped with an analogue input to become a complete preamplifier for analogue and digital sources, both the analogue line input and the preamp stage operate in a fully analogue way to preserve the purest audio quality (available on DS-10 PLUS only).

    Part of the Series 10, the DS-10 is the perfect connection between the PH-10 phono stage and the PA-10 power amplifier, and the core of a smart stereo system.

    The DS-10 is a Roon Ready device with a quick plug&play set-up and multi-room capabilities. Simply connect it to your network using the Wi-Fi or the Ethernet port and to your power amplifier or active speakers, and get ready to explore the limitless possibilities of high-resolution music. Stream through Roon, Airplay, Tidal, MQA, Qobuz, Spotify and Deezer or access your collection of digital music stored locally on a NAS or a USB flash drive controlling the DS-10 PLUS with our easy to use GN Control App on your smartphone or tablet (available for free on iOS and Android).

    The DS-10 has a unique feature that sets it apart from any other DAC – its behaviour can be changed to adapt to the music played without modifying the audio signal and maintaining the highest audio quality, acting on the PCM Equalisation curve (Low-Pass filter), the High-Frequency De-emphasis, and the internal power profile. Such profiles can be selected in real-time during music playback delivering a unique listening experience and ease of use thanks to the clear menu on the TFT display. It’s time to enjoy the unprecedented listening pleasure that only the DS-10 can offer you.

    DAC

    D/A Converter AKM AK4493 PCM up to 32bit/768kHz & DSD512 native

    Streamer

    Roon Ready, MQA, Airplay, vTuner, Tidal, Qobuz, Deezer, Spotify

    Connectivity

    LAN/WLAN
    Bluetooth 5.0 (44/16)

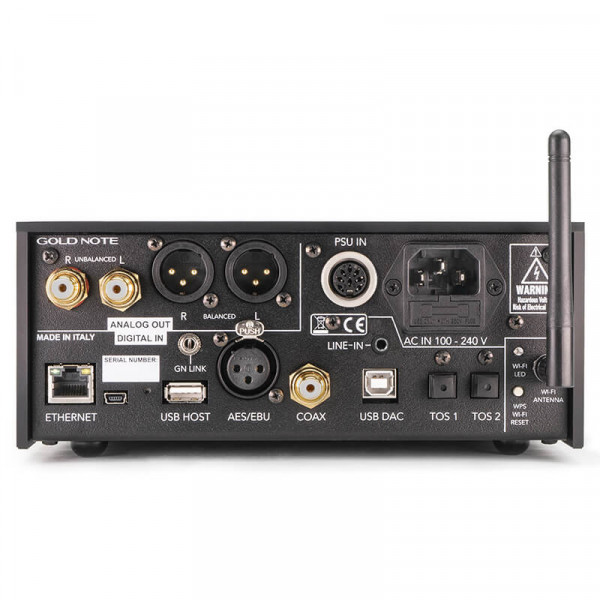

    Digital Inputs

    1 RCA Coax (PCM 24/192)
    2 Optical Tos-Link (PCM 24/192)
    1 AES/EBU XLR (PCM 24/192)
    1 USB-B (PCM 32/768, DSD512)
    1 USB-A (PCM 24/192, DSD64)

    Analogue Input

    3,5mm mini jack

    Audio Outputs DAC

    stereo RCA @ 1Volt and balanced XLR @ 2Volt

    Audio Outputs Preamp

    Stereo RCA, balanced XLR;
    1 headphone 6,3mm Jack on the front panel double gain

    Output Impedance

    50Ω

    Frequency Response

    20Hz-20kHz +/-0.1dB

    THD - Total Harmonic Distortion

    0.001% max

    Signal to Noise Ratio

    -125dB

    Preamp Stage Volume Control

    enabled/disabled by remote

    Dynamic Range

    120dB

    Supported Audio Formats (Network)

    PCM 24bit/192kHz
    DSD64: DSF, DFF
    AIFF (.aif, .aiff, .aifc)
    ALAC
    WAV (.wav) packed/unpacked
    FLAC
    MP3
    Apple Lossless
    OGG
    Monkey’s
    IMPORTANT: UPnP server must support DSD streaming in order to stream DSD files.

    Supported Media Servers

    all UPnP / DLNA / Roon

    Remote Control

    included

    Control App

    available for free on iOS and Android
    Search for "GN Control" on the Apple App Store or Google Play Store

    Power Supply

    100-240V, 50/60Hz
    Multiple Transformer proprietary power supply
    Power consumption: 30W

    Dimensions

    200mm W, 80mm H, 260mm D

    Weight

    4kg net
    5Kg boxed

    Finishes

    Brushed Aluminium in Black, Silver or Gold color
