ROTEL MICHI P5

The Michi P5 Control Amplifier delivers the ultimate culmination of audio performance with a full complement of source inputs.  The meticulous circuit design, critical component selection and over 3 years in the making ensures the P5 meets the highest of standards allowing this preamplifier to proudly wear the Michi logo.

ICAKM premium 32-bit/768kHz Digital to Analog Converter - Moving Coil and Moving Magnet phono stage input - Bluetooth with aptX and AAC - Balanced XLR inputs and  - Supports MQA

Product Description

The Michi P5 Control Amplifier delivers the ultimate performance in audio processing with a full complement of analog and digital source inputs. Over 3 years in the making, every aspect of the P5 has been carefully crafted including the power supply, circuit design and critical component selection to ensure the highest integrity of the audio signal eliminating unwanted noise and distortion.

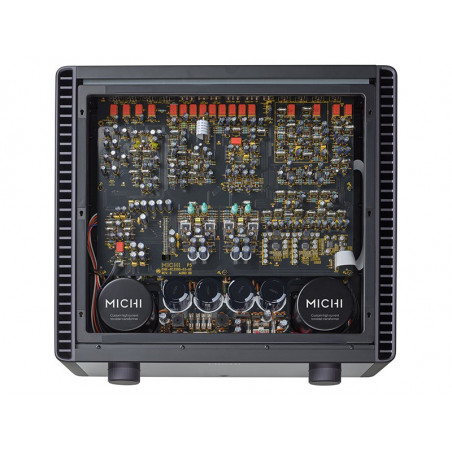

The Dual AKM 32-bit DACs feed the Class-A preamplifier circuit ensuring detail, accuracy and the highest musical fidelity while maintaining crucial rhythm and timing for all musical genre regardless of your listening style. These circuits are supported by an array of 17 independent voltage regulators driven from 2 custom designed and factory built toroidal transformers with low ESR smoothing capacitors to deliver ripple free current to all critical circuits.

Accuracy and detail are essential in reproducing audio and equality important is delivering music that is enjoyable and entertaining. The P5 excels in all aspects building on over 55 years of audio design experience. The bespoke in-house manufacturing facility ensures this preamplifier is built to highest of quality standards allowing it to proudly wear the Michi logo.

Automation and control system integration is easily supported with RS232 and Ethernet connections.

The Michi P5 includes MQA (Master Quality Authenticated) technology, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording.

DIMENSIONS (W × H × D)

485 × 150 × 452mm
19" × 6" × 17.75"

FRONT PANEL HEIGHT

132mm (5.25")

POWER REQUIREMENTS

120V, 60Hz

POWER CONSUMPTION

40W

STANDBY POWER CONSUMPTION

Normal: <0.5W

Network Wakeup: <2W

NET WEIGHT

22.9kg (50.5lbs.)

BTU RATING (4Ω, 1/8th power)

87 BTU/h

TOTAL HARMONIC DISTORTION (THD)

(20Hz–20kHz) <0.002%

FREQUENCY RESPONSE

Line Level Inputs: 10Hz - 100kHz (±0.3dB)

Digital Inputs: 20Hz - 20kHz (±0.3dB)

Phono Input: 20Hz - 20kHz (±0.3dB)

S/N RATIO (IHF "A" Weighted)

Line Level Inputs: 116dB

Digital Inputs: 100dB

Phono Input: 80dB

More Specifications

INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)

<0.002%

INPUT SENSITIVITY

Line Level Inputs (RCA): 160mV

Line Level Inputs (XLR): 250mV

Phono Input (MM): 2.5mV

Phono Input (MC): 250uV

Digital Inputs: 0dBFs

INPUT IMPEDANCE

Line Level Inputs (RCA): 47kΩ

Line Level Inputs (XLR): 100kΩ

Phono Input (MM): 47kΩ

Phono Input (MC): 47kΩ

Digital Inputs: 75Ω

INPUT OVERLOAD

Line Level Inputs (RCA): 12V

Line Level Inputs (XLR): 12V

Phono Input (MM): 199mV

Phono Input (MC): 22mV

OUTPUT LEVEL

Unbalanced (RCA): 1V

Balanced (XLR): 2V

OUTPUT IMPEDANCE

Unbalanced (RCA): 470Ω

Balanced (XLR): 100Ω

CHANNEL SEPARATION

Line Level Inputs: >85dB

Phono Input: >55dB

TONE CONTROLS

±10dB at 100Hz / 10kHz

COAX/OPTICAL DIGITAL INPUT SIGNALS

LPCM (Up to 24-bit/192kHz)

PC-USB

USB Audio Class 1 (up to 24/96)

USB Audio Class 2 (up to 32/384)*

*Driver Installation Required

DSD and DoP Support

MQA Support
