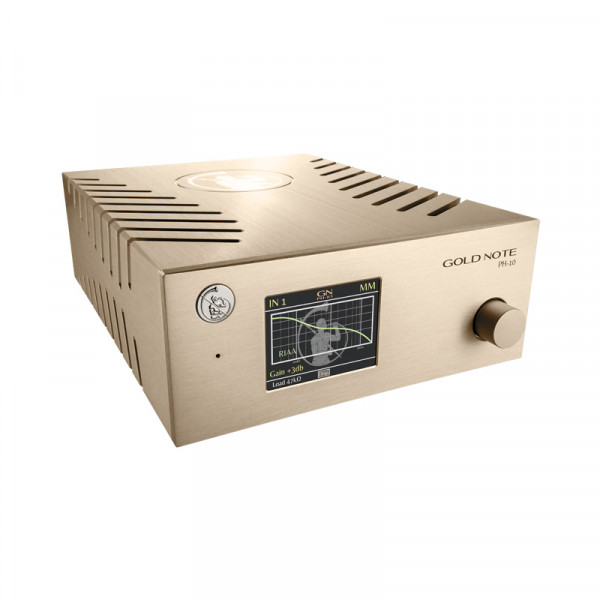

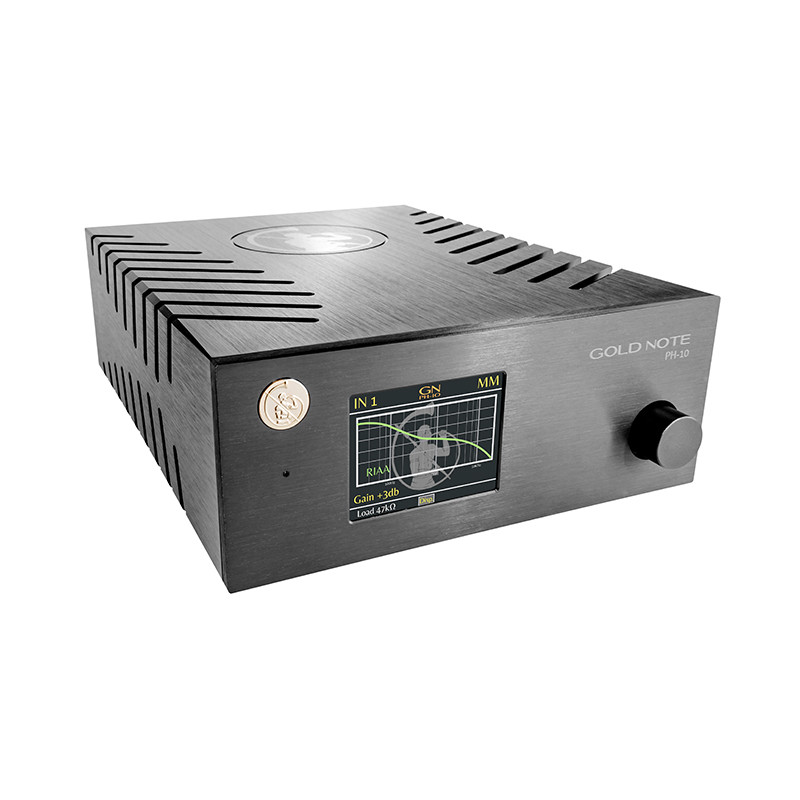

    Designed to achieve the best possible sound and total control over the listening experience, on PH-10 everything has found its rightful place: on the front panel the large TFT display shows all the settings information through an intuitive and easy to read graphic. PH-10 also features our Single Knob Control technology, an elegant solution to browse and change functions instantly that lets you enjoy the maximum of your audio system by finding the perfect match between PH-10 and your MM or MC cartridges through intuitive gestures, without the need to disconnect cables or adjust switches. It has never been easier to extract the most detail from your vinyls!



    THE MOST AWARDED PHONO STAGE

    The PH-10 is an ultra-versatile phono preamplifier that offers unique features, including EQ CURVES, LOAD and GAIN adjustments: a fully analogue design engineered exclusively with the best components to recreate the musical event in the most natural way possible. Being the first amplification stage of the audio chain, the phono stage assumes great importance and this is why the PH-10 offers the very best sound and versatility using the latest technology.

    To control the PH-10 we developed the user friendly Single Knob Control (SKG). Combined with the color display this rotary joggle allows quick adjustments of any function in real time during music playback.

    The PH-10 lets you select the most appropriate EQ curve for every record: the RIAA, the DECCA-LONDON or the AMERICAN- CBS-COLUMBIA. All selection appears clearly as a graph on
    the large display. Each curve is enhanced by a modern Gold
    Note proprietary design that derived from the Neumann master cut machine project for superior dynamic and high-frequency extension.

    The perfect cartridge matching is guaranteed with up to 9 different LOAD options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22KΩ, 47KΩ] and 4 different selectable GAIN levels [-3dB, 0dB, +3dB, +6dB] that will let you adjust the preamplifier accurately to achieve the best sound experience with any kind of MM and MC cartridges.

    With his two separate RCA inputs the PH-10 can be connected to two different tonearms, each with independently adjustable settings stored into memory, even when the unit is switched off. This guarantees to the audiophile a unique flexibility and impressive user-friendliness.

    To maximise the performance of the PH-10, we also developed the PSU-10, a dedicated external super inductive power supply that allows the PH-10 to achieve its fullest potential, reaching an even higher degree of musical realism, better dynamics and greater three-dimensionality sound.

    Ingressi analogici

    2 ingressi MM/MC RCA indipendenti

    Analogue Outputs

    Stereo unbalanced RCA and balanced XLR

    Filtro subsonico

    10Hz/36dB octave

    Total Harmonic Distortion THD

    <0.05%

    Signal to noise ratio

    -89dB

    Dynamic Response

    105dB

    Risposta in frequenza

    20Hz – 20KHz
    [Enhanced 20Hz – 50KHz] @ +/- 0.3dB

    Line Outputs level (fixed)

    Stereo RCA @ 2V and balanced XLR @4V

    Sensibilità d'ingresso

    0.1mV MC up to 7.0mV MM

    Impedenza d'ingresso

    9 options [10Ω, 22Ω, 47Ω, 100Ω, 220Ω, 470Ω, 1000Ω, 22KΩ, 47KΩ]

    Gain

    45/65dB (+6dB/-3dB)

    Power Supply

    100-120V / 220-240V, 50/60Hz
    Power consumption: 10W Super Linear supply
    Standby consumption: < 0,5W

    Dimensions

    200mm W 80mm H 260mm D

    Peso

    3Kg netto
    4Kg confezione

    Finishes

    Brushed Aluminium Black, Gold or Silver
