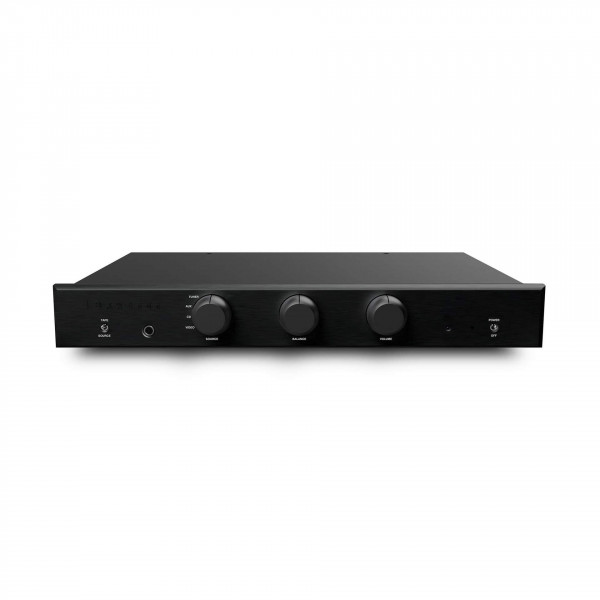

BRYSTON BP-6

The Bryston BP6 preamplifier is a simplified state-of-the-art preamplifier combining outstanding function with complete musical accuracy, providing an exact duplication of the original recording experience, without distortion or colouration.

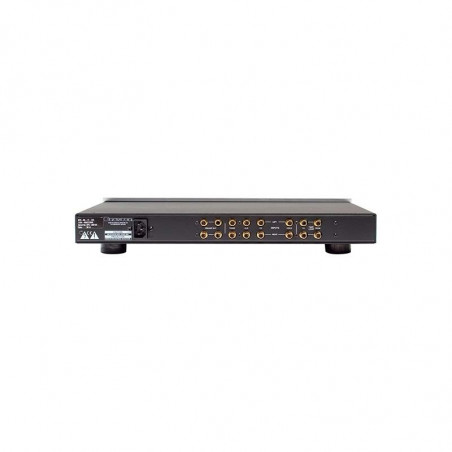

Input: 4x RCA single ended pairs*, RCA single ended (tape loop), SPDIF (RCA)**
Output: 2x RCA single ended pairs

Feature

• Class A discrete operational amplifiers

• Four pairs of high level stereo inputs

• Gold plated input and output contact surfaces

FREQ. RESPONSE: 20Hz~20kHz +/- .05dB

MAXIMUM OUTPUT: 15 volts IMD/THD: <0.005% at 3 volts out

SENSITIVITY: 500mV (High level inputs)

NOISE: -100dB (Ref. 500mVin, 20~20K Hz):

ADDITIONAL SPECIFICATIONS for BP6DA DIGITAL INPUTS:

INPUT SAMPLE RATE: 16kHz to 108kHz.

WORD LENGTH: 16, 18, 20, 24 Bit

DATA FORMAT: SPDIF standard THD+N: < 0.002%, 20Hz~20kHz

ADDITIONAL SPECIFICATIONS for BP6P PHONO INPUTS:

THD+N: <0.005%, IM or THD, any frequency or combination of frequencies from 20-20kHz, at rated output or below.

NOISE: Phono: -80dBA referred to an input of 5 mV

RIAA ACCURACY: Within less than +/- 0.05dB from 20~20kHz

SENSITIVITY: 5mV
