MCINTOSH C12000ST

2-Channel Solid State and Vacuum Tube Preamplifier

• Separate audio & control sections
• 12 analog inputs including 2 configurable phono inputs
• Offers both solid-state and vacuum tube output
• Fully balanced circuitry

Maximum Control and Configurability.

The C12000 Preamplifier is the next generation of our acclaimed two-chassis preamplifier design. The two-chassis design allows the audio section to be completely separated from the control and power sections. The absolute isolation of a preamplifier's two main functions – control and sound – is achieved by this unusual but effective design. Splitting these primary purposes of a preamplifier up into separate chassis will deliver the purest sound reproduction possible.

McIntosh C12000 Solid State and Vacuum Tube Preamplifier

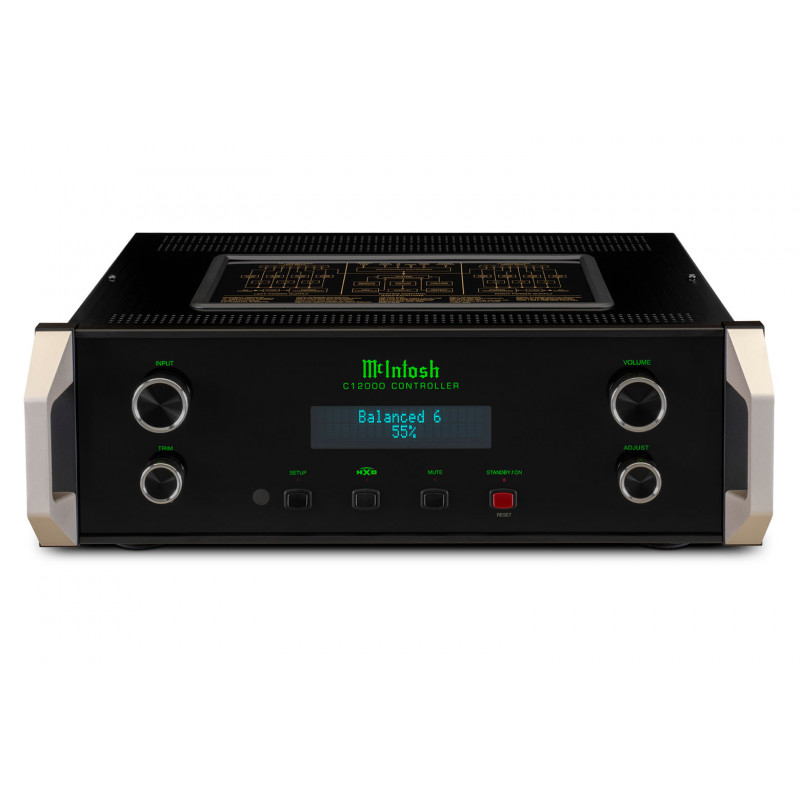

The C12000 is comprised of the C12000 Controller module and the C12000 Preamplifier module. All power control, data ports, and external control connections are located in the C12000 Controller. Dual isolated power supplies drive the left and right channels, while a dual microprocessor gives robustness to the control system. The C12000 Preamplifier houses the audio connections and circuitry. Inside each, the left and right channels are electrically and mechanically isolated from each other to allow true dual mono operation – resulting in the ultimate stereo separation and sonic purity. The two units are connected together via a pair of specially designed, high performance umbilical cables that are shielded to prevent outside noise from leaking into the audio signal. Although they are two separate units, when connected they act as one and are easy to control and operate from the included remote control or the C12000 Controller front panel.

A total of 12 analog inputs1 are located in the C12000 Preamplifier module: six balanced, four unbalanced, and two unbalanced phono inputs. The phono inputs are no longer set up as dedicated for Moving Coil or Moving Magnet cartridges; instead, both are configurable as either Moving Coil or Moving Magnet with adjustable Capacitance and Resistance Loading, along with adjustable Gain in 6dB steps from 40dB to 64dB. This provides maximum flexibility for you to configure the C12000 to best fit your turntable(s), cartridge(s), and vinyl record collection.

The 12AX7A and 12AT7 vacuum tubes that power the high-level section are visible through the front of the C12000 Preamplifier module.

The C12000 Preamplifier module offers both vacuum tube and solid-state output, allowing you to decide which to use based on the music being played, the audio components in the rest of your home audio system, and your sound preferences. All outputs are driven by discrete amplifiers. For vacuum tube output, six tubes or valves power the high-level preamplifier section with two 12AT7 tubes and one 12AX7A tube assigned to each the left and right channel. Solid-state output is via a discrete balanced op-amp.

The four 12AX7A vacuum tubes that power the phono stage are visible from the top of the C12000 Preamplifier module.

Regardless if you choose the vacuum tube or solid-state output, the phono stage utilizes four 12AX7A vacuum tubes, with two tubes used per channel in a fully balanced configuration that incorporates RIAA equalization.

For connecting the C12000 to your amplifier(s) and the rest of your home music system, there are four total outputs: one balanced vacuum tube; one balanced solid-state; one fixed unbalanced; and one programmable unbalanced (can be either vacuum tube or solid-state). The amount of user adjustments available on the two phono inputs and all the outputs represent a new level of customization in McIntosh preamplifier design, allowing you maximum flexibility in how you want to configure your audio system.

The amplifier circuit has a high common mode rejection, so any noise introduced by interconnect cables is significantly reduced. For personal listening, our high output High Drive headphone jack is included, while the user selectable Headphone Crossfeed Director (HXD®) brings an added depth and spatiality to your music. The C12000 can be seamlessly integrated into your existing multi-channel home theater system via the Home Theater Pass Through feature.

The C12000 preamplifier employs fully balanced circuitry to match the level of performance achieved in any of our Quad Balanced amplifiers. Both the C12000 Controller and C12000 Preamplifier chassis are made from stainless steel polished to a mirror finish plus hairline brushed black Titanium stainless steel, offering an enhanced degree of richness and refinement.

With classic McIntosh black glass front panels, blue meters, knobs, stainless steel chassis, illuminated logos, and custom machined brushed aluminum handles, the C12000 makes a visual statement in addition to its audio prowess. It can be paired with a variety of McIntosh amplifiers, speakers, room correction devices, CD players, turntables, tuners, media streamers and other source components to make a complete home audio system. Contact your local dealer to learn more.

SPECIFICATIONS

• Number of Channels

2

• Total Harmonic Distortion

High Level: 0.005%
Phono: 0.05%

• Frequency Response

+0, -0.5dB from 20Hz to 20kHz
+0, -3dB from 10Hz to 100kHz

• Maximum Volts Out (Balanced / Unbalanced)

20V RMS / 10V RMS

• Sensitivity High Level (Balanced / Unbalanced)

900mV / 450mV

• Sensitivity Phono (Moving Coil)

0.25 – 2.5mV

• Sensitivity Phono (Moving Magnet)

5 – 10mV

• Signal To Noise Ratio (High Level)

107dB

• Signal To Noise Ratio (Moving Coil)

79dB

• Signal To Noise Ratio (Moving Magnet)

83dB

• Voltage Gain (High Level)

15dB

• Voltage Gain (Moving Coil)

58 – 64dB

• Voltage Gain (Moving Magnet)

40 – 46dB

• Input Impedance (Balanced / Unbalanced)

50K ohms, 25K ohms

CONNECTIVITY

• Balanced Input

6

• Unbalanced Input

4

• Phono Input Moving Coil

Up to 2 (unit has 2 Phono inputs; each is user configurable as either Moving Coil or Moving Magnet)

• Phono Input Moving Magnet

Up to 2 (unit has 2 Phono inputs; each is user configurable as either Moving Coil or Moving Magnet)

• Upgradeable Digital Audio Module

No

• Digital Coaxial Input

0

• Digital Optical Input

0

• Digital MCT (DIN) Input

0

• Digital USB Input

0

• HDMI (ARC) Input

0

• Digital AES/EBU Input

0

• Balanced Fixed Output

0

• Balanced Variable Output

2 (1 for Solid State, 1 for Vacuum Tube)

• Unbalanced Fixed Output

1

• Unbalanced Variable Output

1

• Headphone Output

1/4" High Drive with Headphone Crossfeed Director (HXD^®)
Selectable headphone impedances of: 16 ohms - 40 ohms, 40 - 150 ohms, 150 - 600 ohms

• Input Level Match

Yes, +/- 6dB

• Home Theater PassThru

Yes

• Unbalanced Analog Connector Type

Premium gold-plated solid brass

• Service Port

1

CONTROL

• Tone Controls

No

• Tone Bypass and Input Assign

No

• RS232 Control Input

Yes

• Power Control Output

1 Main, 2 Output, 4 Trigger

• Rear Panel Data Port

8

• Rear Panel IR Sensor Input

Yes

GENERAL SPECIFICATIONS

• Multi-Chassis or Single

Multi Chassis (C12000C plus C12000ST)

• Output Meters

C12000C: No
C12000ST: Yes

• Vacuum Tube or Solid State

Both (user selectable)

• Power Consumption (On)

75 watts

WEIGHTS & DIMENSIONS

• Unit Dimensions (W x H x D)

Each module: 17.5" (44.45cm) x 6" (15.24cm) x 18" (45.7cm)

• Unit Weight

C12000C: 27 lbs (12.3 kg)
C12000ST: 25 lbs (11.3 kg)

• Shipping Weight

C12000C: 42 lbs (19.5 kg)
C12000ST: 40 lbs (17.7 kg)
