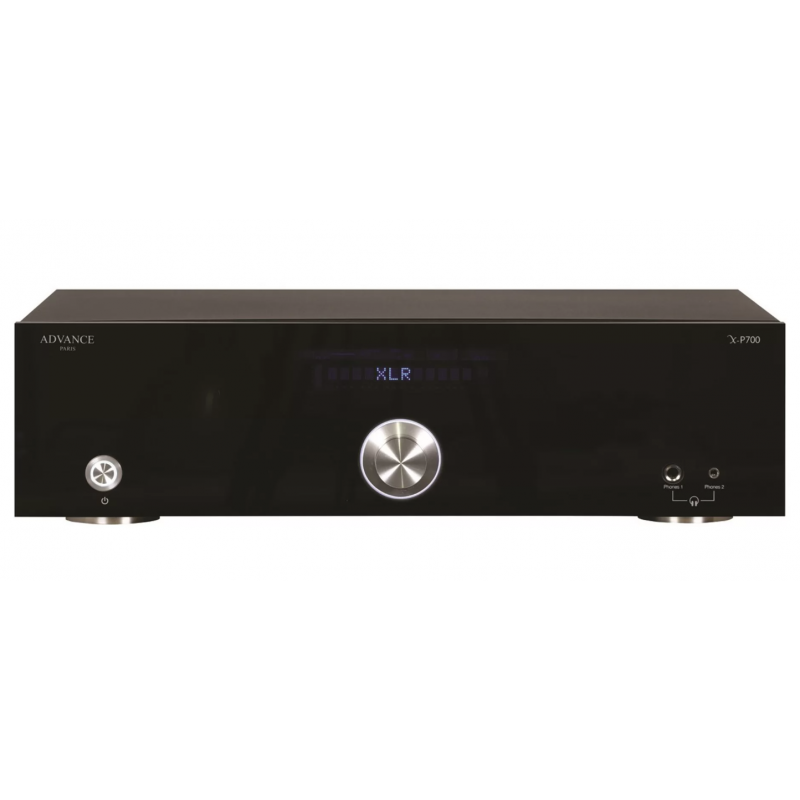

Dual Mono preamplifier with separate and independent channels powered by 2 toroidal transformers.
The operating modes are selectable with bipolar transistors configured in double cascade polarized in class A and discrete with differential JFET transistors with polarized bipolar current mirrors in class AB.
Its digital-to-analog converter is based on a TI BURR-BROWN PCM1796DB DAC Chip with support for PCM formats up to 24-bit / 192 KhZ. The USB receiver is asynchronous XMOS XU208-128-TQ64.
The headphone amplifier has 2 independent outputs with individual gain and impedance adjustment.
Data sheet
Dual Mono Preamplifier
Separate and independent channels
Separate PCM cards
Phono stage MC High / Mc Low / MM
Digital / analog converter based on DAC Chip TI BURR-BROWN PCM1796DB
XMOS XU208-128-TQ64 asynchronous USB receiver
Headphone amplifier
USB Type-A socket

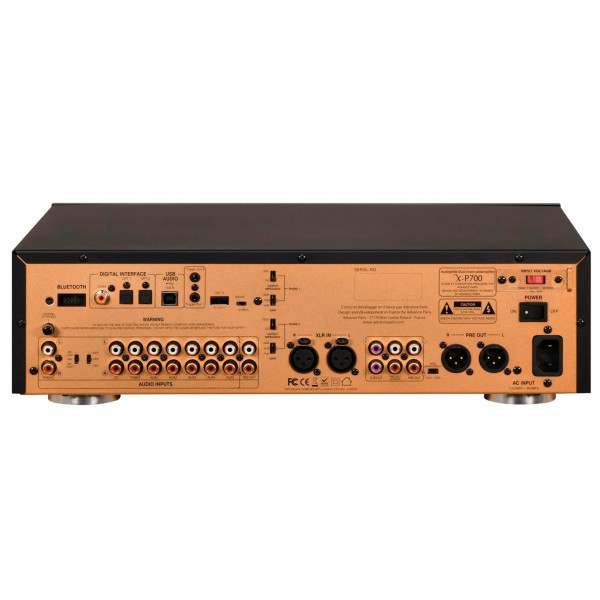

Analogue inputs: 1 Balanced XLR, 7 Unbalanced RCA, 1 Phono MC / MM
Digital inputs: 1 USB Type-B, 1 S / PDIF Coaxial electric RCA, 2 Toslink optical
Analogue outputs: 1 stereo L / R balanced XLR, 1 stereo L / R unbalanced RCA, 1 stereo L / R Pre-Out Hi-Pass RCA, 2 Sub Out RCA
Double trigger out port
Black finish with 10mm thick methacrylate panel
Remote control included
Dimensions (LxHxP): 43 x 12 x 28 cm
Weight: 6.7 kg
