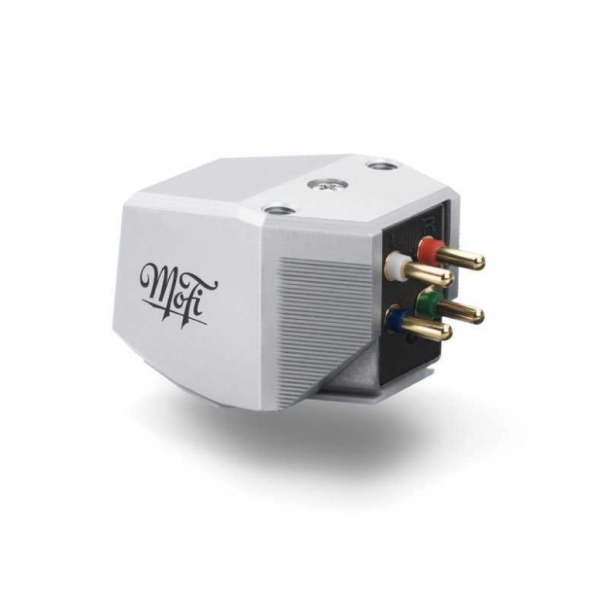

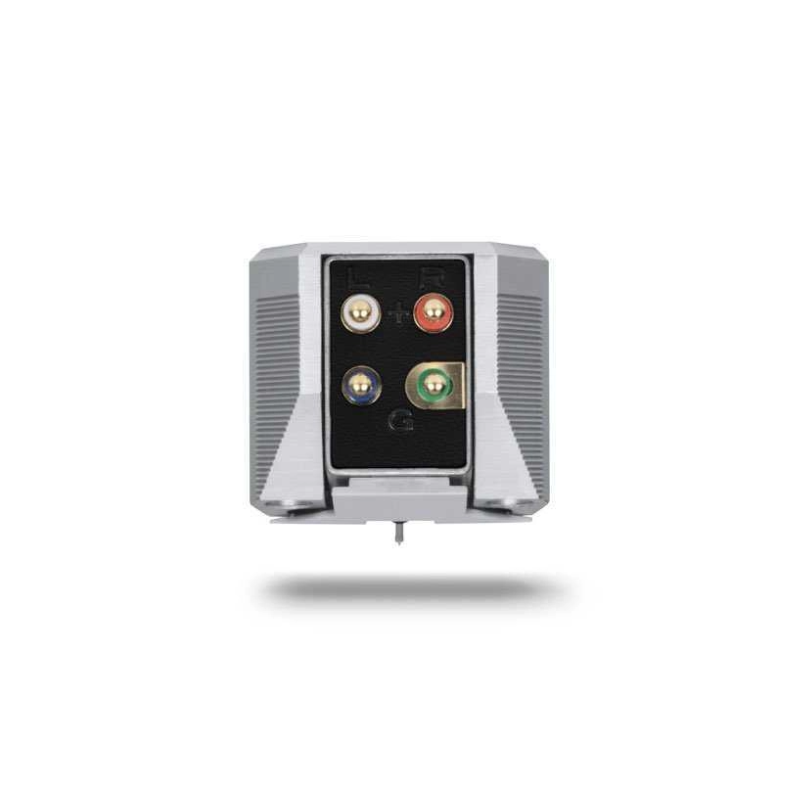

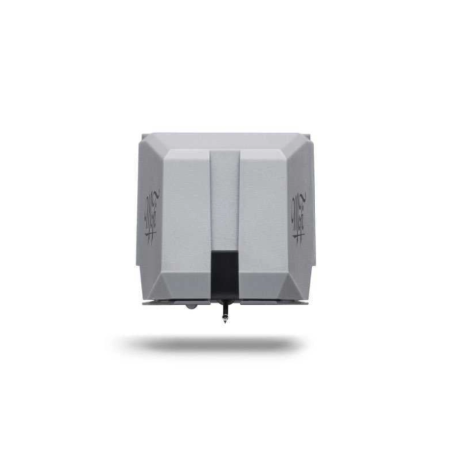

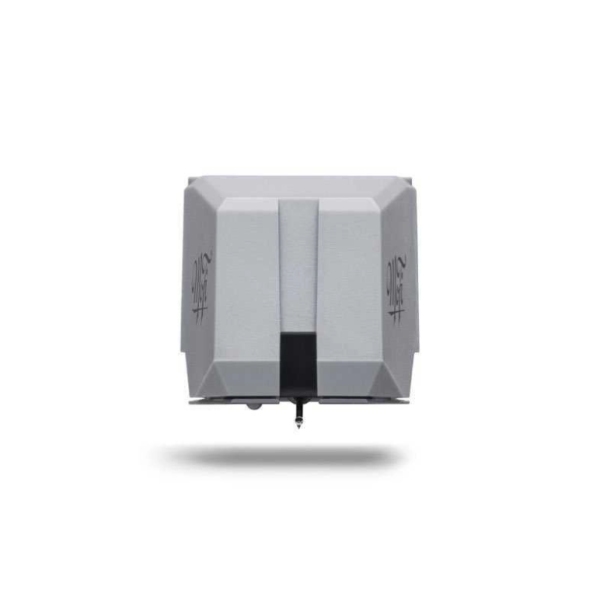

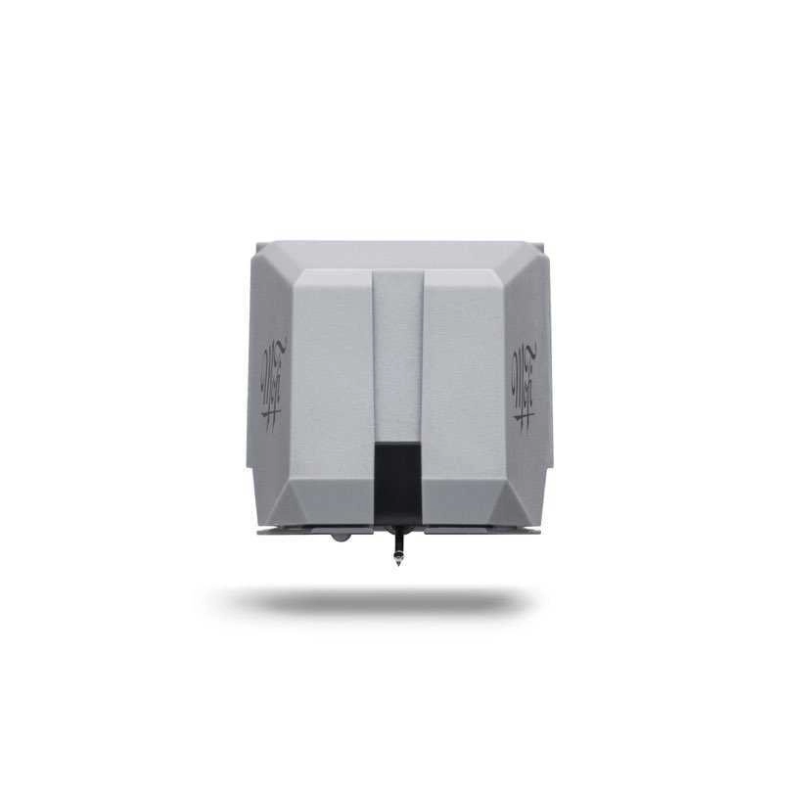

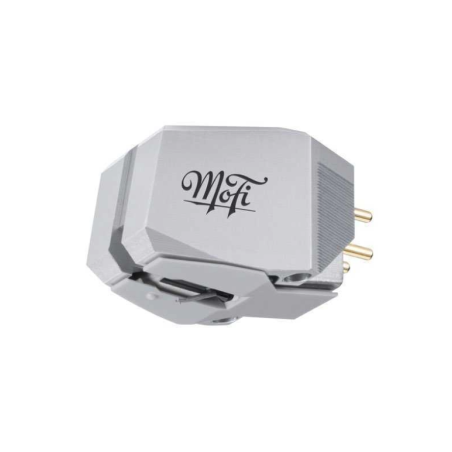

MOFI ULTRATRACKER MM

MoFi UltraTracker MM is MoFi's premium cartridge designed to take your listening quality to a new level. It equips the top of the range MoFi UltraDeck turntable but you can also buy them separately for your turntable. This cartridge offers great sensitivity and durability.

Description

MoFi UltraTracker - the premium turntable cartridge created by the creators of premium vinyl!

MoFi UltraTracker cartridges are designed with where it all begins – where the disc is created. In particular, MoFi is lucky enough not to have to invent anything here: a fine cutting lathe has been creating valuable editions of vinyl records at the Mobile Fidelity Sound Lab in the USA for decades.

The premium UltraTracker cartridge features a V-Twin dual magnet generator that exactly mirrors the layout of the cutting cartridge that originally creates the recording groove. Employing two powerful low mass magnets aligned in a V shape parallel to the grooves in the disc, the UltraTracker offers excellent tracking ability.

UltraTracker is natively equipped in the MoFi UltraDeck + turntable but can be purchased alone to be retrofitted on the basic version of the same turntable (UltraDeck) as well as on other turntables.

Body in damped aluminum

The MoFi UltraTracker's well-damped aluminum body controls resonances for precise bass reproduction. In addition, UltraTracker offers an ideal bandwidth that lets every detail of the music leak through without any smudges.

Nude Elliptical cut diamond stylus

Using a Nude elliptical cut diamond stylus (the nib that fits between the grooves of the record), UltraTracker easily traces complex dynamic passages. You will hear a great deal of detail and a musical experience that will send shivers down your spine. the diamond is chosen to give the stylus maximum durability. The shape (cut) given to the stylus is also very important and determines the amount of detail that can emerge from the record. The design chosen by MoFi guarantees great durability and quantity of details.

TECHNICAL SPECIFICATIONS

Features of the MoFi UltraTracker premium turntable cartridge

Type Dual Magnet (MM) Stereo

Weight 9.7g

Tracking Force 1.8-2.2g

Impedance 47kOhm

Capacitance 100 pF

Frequency response 20-25,000Hz

Elliptical bare stylus

Output voltage 3.5mV

Characteristics

V-Twin double magneto generator

Elliptical stylus in diamond

Well damped aluminum body

3.5mV output

Compliance

Static compliance : 35 x 10e-6/dyne

Dynamic compliance : 10 x 10e-6/dyne
