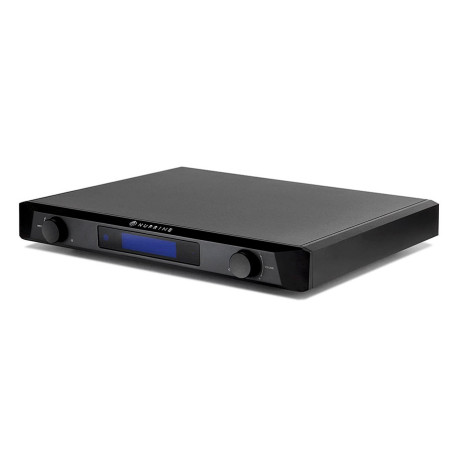

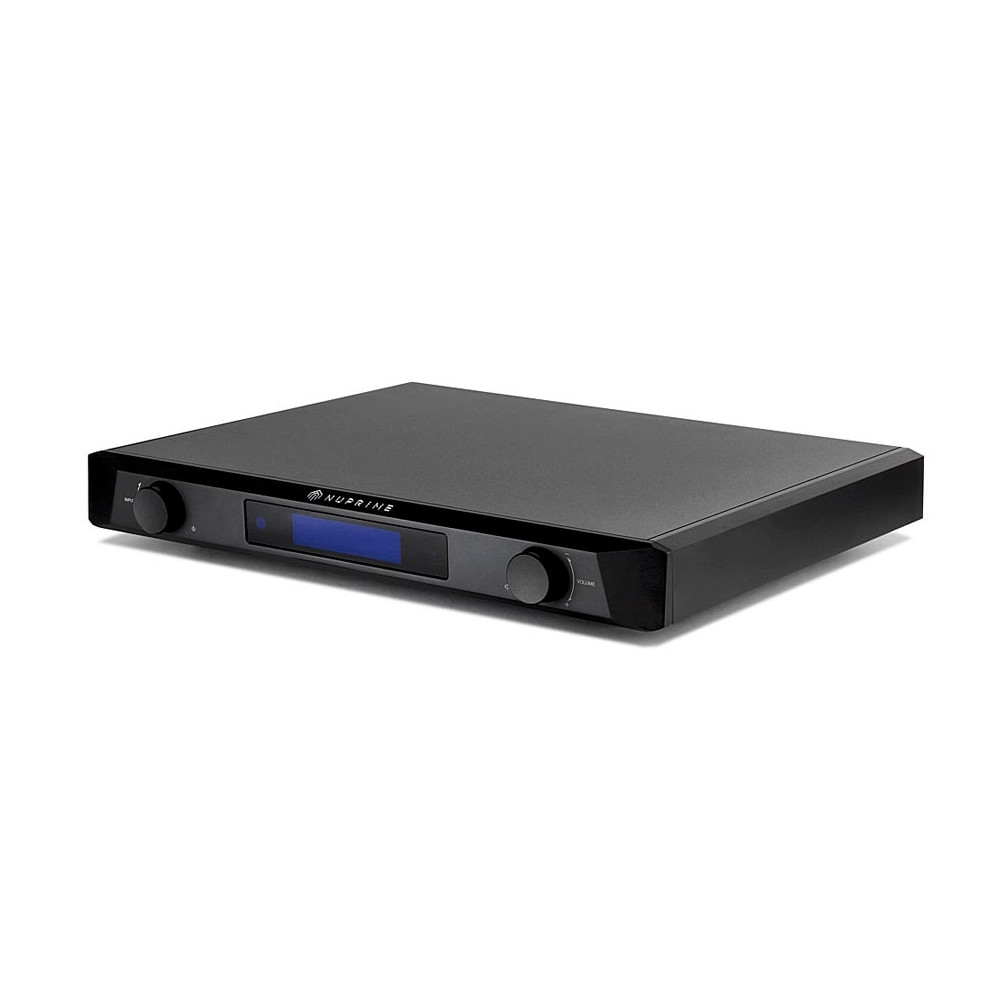

NuPrime Evolution DAC-2 – Reference Hi-End DAC and Preamplifier
Description
The NuPrime Evolution DAC-2 is a reference-grade high-end DAC and preamplifier designed for audiophiles seeking ultimate transparency, musical realism, and cutting-edge digital audio performance. Featuring dual ESS Technology ESS9038Q2M 32-bit DAC chips dedicated independently to the left and right channels, the Evolution DAC-2 delivers exceptional channel separation, ultra-low noise, and highly detailed sound reproduction.
Designed for state-of-the-art hi-fi and high-end stereo systems, the Evolution DAC-2 integrates a premium analog preamplifier stage using audiophile-grade components including MUSES8820 operational amplifiers and the MUSES72320V electronic volume controller, ensuring a natural, dynamic, and refined listening experience.
Its completely redesigned power supply section employs ultra-low-noise C-Core transformers together with large-capacity filtering circuits for superior power stability and reduced electromagnetic interference. The proprietary NuPrime PSRC processor performs advanced sample rate conversion and supports ultra-high-resolution audio playback up to PCM 768kHz and DSD512.
With multiple digital and analog inputs, balanced XLR and RCA outputs, variable or fixed output modes, and support for MQA and DoP playback, the NuPrime Evolution DAC-2 becomes the ideal digital control center for premium audiophile systems.
Key Features
- Reference high-end DAC and preamplifier
- Dual ESS9038Q2M 32-bit DAC architecture
- Dual-mono design for maximum channel separation
- PCM support up to 768kHz and DSD512
- Proprietary NuPrime PSRC processor
- Preamplifier stage with MUSES8820 and MUSES72320V
- Ultra-low-noise C-Core transformers
- 9 digital inputs and 2 analog inputs
- Balanced XLR and RCA outputs
- Fixed or variable output mode
- MQA and DoP compatible
- Upgradeable USB firmware
- Premium audiophile-grade construction
Technical Specifications
| Specification | Details |
|---|---|
| Type | Hi-End DAC and Preamplifier |
| DAC Chipset | Dual ESS Technology ESS9038Q2M 32-bit |
| PCM Support | Up to 768kHz |
| DSD Support | Up to DSD512 |
| Processor | NuPrime PSRC Sample Rate Conversion |
| Digital Inputs | USB, AES/EBU, Coaxial, Optical, IIS/DSD |
| Analog Inputs | 2 x RCA |
| Analog Outputs | Unbalanced RCA / Balanced XLR |
| RCA Output Level | 4 Vrms |
| XLR Output Level | 8 Vrms |
| Input Impedance | 47 kOhm |
| Output Impedance | < 50 Ohm |
| Frequency Response | 20Hz – 20kHz ±0.3dB |
| Signal-to-Noise Ratio | > 110dB |
| THD+N | < 0.0005% |
| Power Supply | Selectable 115V / 230V AC |
| Power Consumption | 13.5W |
| Standby Consumption | 0.9W |
| Dimensions | 430 x 55 x 315 mm |
| Weight | 5.2 kg |
| Finish | Black / Silver |
| Warranty | 2 Years |
Technical specifications based on official NuPrime documentation and authorized distributor information.
