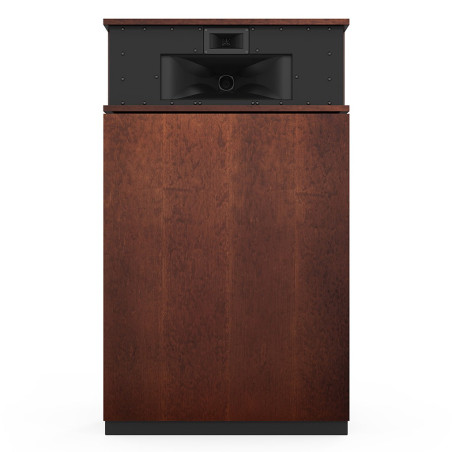

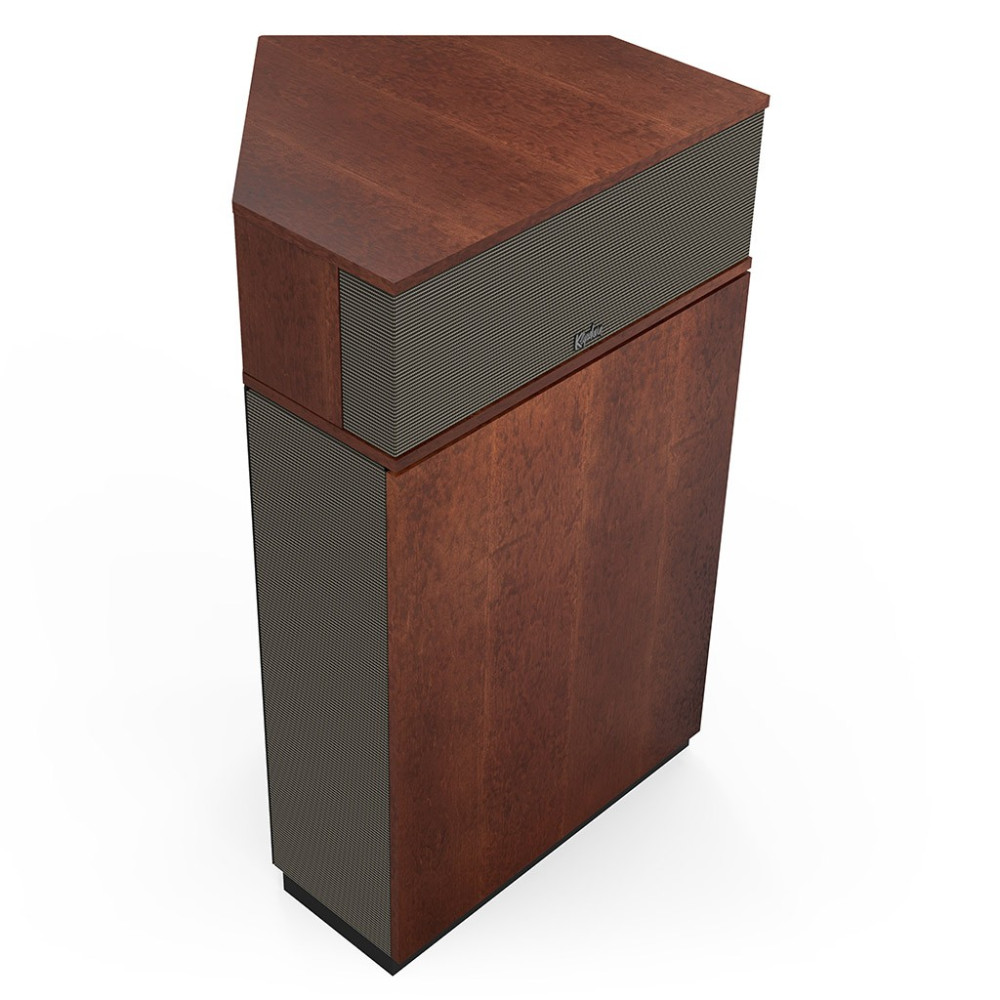

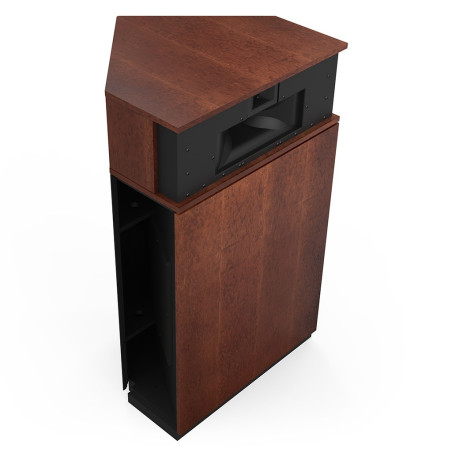

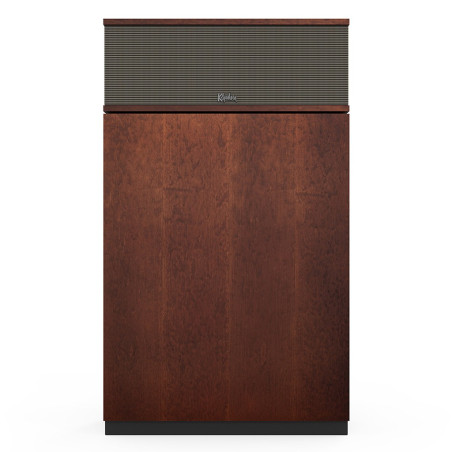

KLIPSCH KLIPSCHORN AK7 - PAIR

Heritage Series, handcrafted in Hope, Arkansas, USA;

- Highly efficient, fully horn-loaded 3-way floorstanding speaker, featuring two separate connection modes that allow for traditional, completely passive tri-amplification, bi-amplification, and mono-amplification configurations, or the integration of the optional dedicated DSP active crossover for superior active tri-amplification and bi-amplification systems;

- Historic, legendary, and inimitable model, rich in patents and redesigned to significantly linearize and extend the low-frequency response, refine the interaction between the horns, generate high sound pressure levels with lower power requirements and membrane strain, increase dispersion and transparency, reduce distortion, and generate a correct, balanced, and colorless timbre;

- 1-inch (25 mm) K-771 tweeter with neodymium magnet, polyimide diaphragm, patented extended wide-dispersion phase plug, and proprietary Tractrix K-792 horn loading system;

- 3-inch (76.2 mm) K-1133-HP midrange driver with phenolic resin diaphragm and proprietary Tractrix K-406M exponential horn loading with Mumps technology;

- 15-inch (380 mm) K-33-E woofer with composite fiber cone and a unique fully enclosed folded exponential trihedral horn loading system (a design solution that provides greater flexibility in speaker placement and orientation, allowing for placement outside the confines of the listening room);

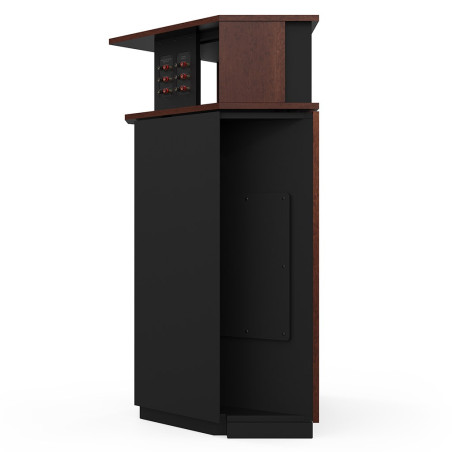

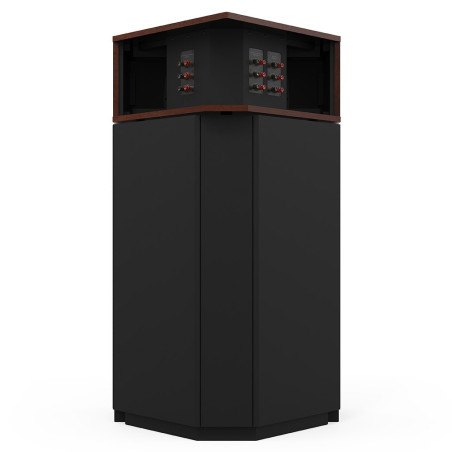

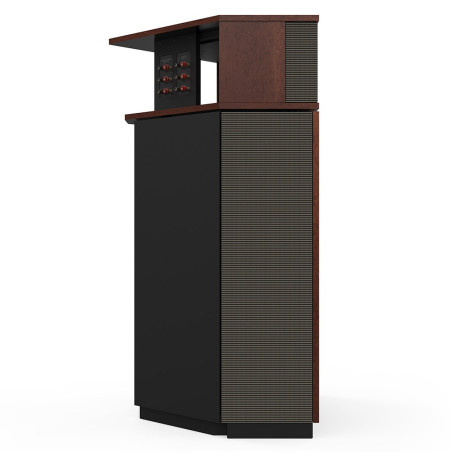

- newly designed I/O connection panel, with dual input connectors (one for the internal passive crossover, the other for the external active crossover) and a set of passive outputs, allowing for easy and immediate switching between active and passive modes;

- frequency response 34 Hz ​​- 19 kHz (+/- 4 dB passive crossover, +/- 2.5 dB active crossover), nominal impedance 8 Ohms (minimum 4 Ohms at 50 Hz), sensitivity 103 dB, maximum sound pressure level 120 dB, power handling 400 Watts peak / 100 Watts RMS, crossover frequencies 380 Hz / 2900 Hz;

- optional dedicated digital active crossover (Klipschorn AK7 Active Crossover), available separately;

- dimensions, including base (W x H x D): 800 x 1352 x 715 mm;

- weight 118 kg
