ELAC NAVIS ARF-51 - PAIR

ELAC Navis ARF-51 – High-End Tri-Amplified Active Floorstanding Speakers (Pair)

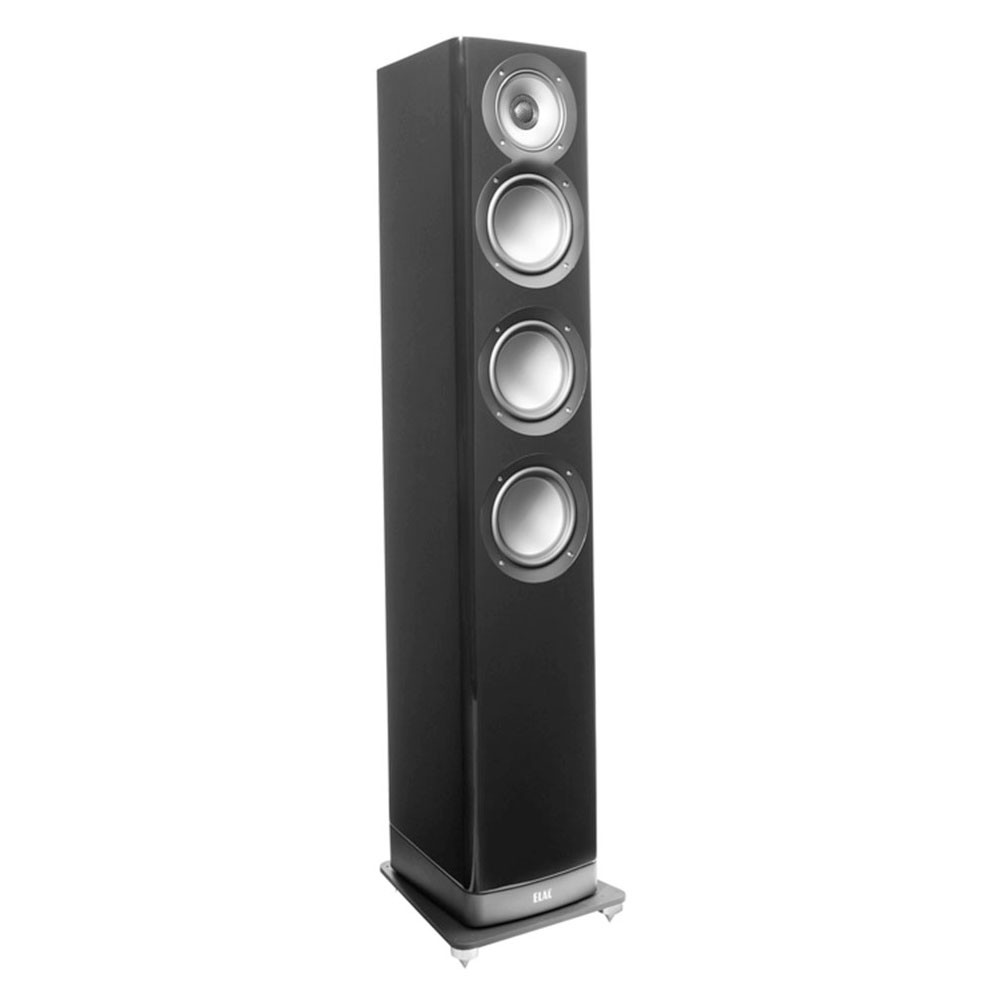

The ELAC Navis ARF-51 represents one of the most advanced expressions of ELAC's loudspeaker engineering philosophy. Designed by Andrew Jones, these premium active floorstanding speakers combine a sophisticated 3-way architecture, dedicated analog amplification for every driver and true audiophile-grade performance in a beautifully crafted enclosure.

Unlike traditional passive loudspeakers, the Navis ARF-51 incorporates all required amplification internally, eliminating the need for external power amplifiers while ensuring perfect optimization between amplifiers, crossover networks and drivers. The result is an exceptionally coherent, dynamic and transparent listening experience.

The heart of the design is a concentric driver assembly featuring a 1-inch soft-dome tweeter mounted at the center of a 4-inch aluminum midrange driver. This configuration provides excellent dispersion characteristics, precise imaging and an exceptionally realistic soundstage.

Low frequencies are handled by three dedicated 5.25-inch aluminum woofers capable of delivering deep, controlled and highly articulate bass performance. The combination of speed, authority and dynamic capability allows the ARF-51 to reproduce virtually any musical genre with ease.

Each driver section benefits from its own dedicated amplifier: 160 Watts BASH for the bass section, 100 Watts BASH for the midrange and 40 Watts Class AB for the tweeter. Total power output reaches 300 Watts per speaker, ensuring exceptional control and effortless dynamics.

The signal path remains fully analog, without mandatory DSP processing or digital conversion stages, preserving signal purity and allowing the speaker to reveal the full quality of upstream source components.

Balanced XLR and unbalanced RCA inputs ensure seamless integration into high-end audio systems, while AirX² wireless compatibility provides additional installation flexibility without compromising sound quality.

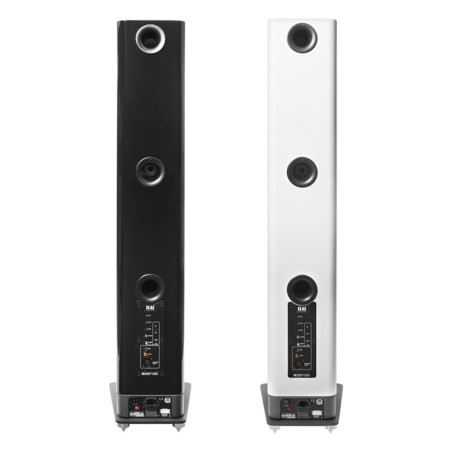

Available in elegant Gloss Black and Gloss White finishes, the Navis ARF-51 combines audiophile performance, luxurious aesthetics and installation simplicity in one exceptional loudspeaker system.

Key Features

• High-end active floorstanding loudspeakers
• 3-way analog active design
• Concentric tweeter and midrange driver
• 1-inch soft-dome tweeter
• 4-inch aluminum midrange
• Three 5.25-inch aluminum woofers
• Dedicated Tri-Amp amplification
• 160 W BASH bass amplifier
• 100 W BASH midrange amplifier
• 40 W Class AB tweeter amplifier
• 300 Watts total power per speaker
• Balanced XLR input
• Unbalanced RCA input
• AirX² wireless compatibility
• Rear-panel EQ controls
• Selectable high-pass filter for subwoofer integration

Technical Specifications

The ELAC Navis ARF-51 is the ideal solution for audiophiles seeking the performance of a premium separates system within an elegant, fully optimized active loudspeaker design capable of delivering outstanding dynamics, transparency and musical realism.
