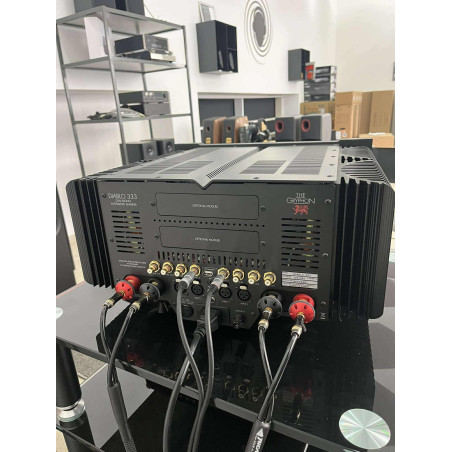

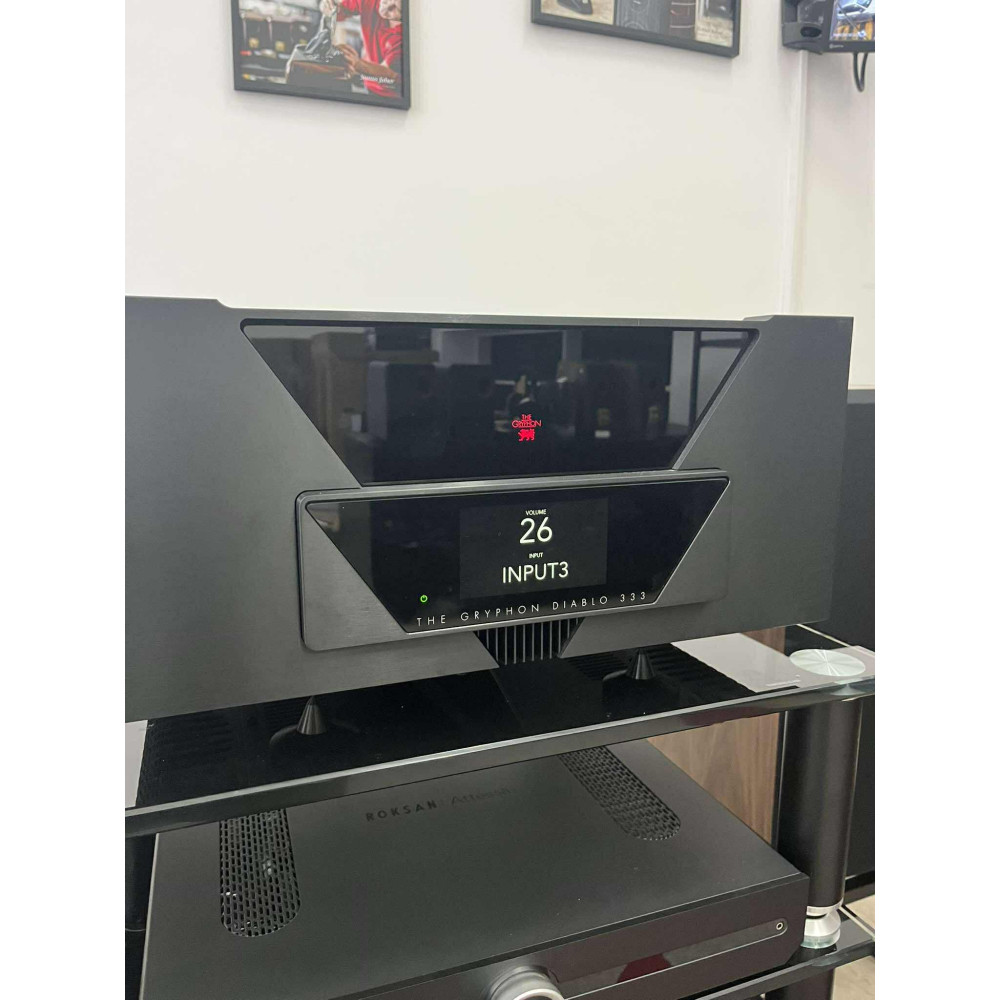

GRYPHON DIABLO 333 - USED

The new Gryphon Diablo 333, designed to surpass the legendary Diablo 300, sets a new benchmark for integrated amplifier performance.

In the eight years since the Diablo 300 was introduced, new component technologies and intensive engineering research have highlighted areas for improvement. Highlights of the circuitry of the new Apex and Commander, Gryphon's flagship amplifier and preamplifier, have been incorporated into the Diablo 333, which boasts 10% more output power than its legendary predecessor. The preamplifier's new ultrafast, low-capacitance transistors offer greater musicality and superior measurement performance.

Surpassing the perfection achieved by the legendary Diablo 300 was no easy feat: introduced at the 2015 High End Munich show, the Diablo 300 set a new benchmark for integrated amplifier performance. With unanimous acclaim from high-end critics and thousands of units sold, the Diablo 300 has maintained its "Best-in-Class" status for nearly a decade, repeatedly outperforming newer, more expensive competitors.

However, over the past eight years, new technologies and intensive engineering research have revealed new areas for improvement. The Diablo 333 builds on the circuitry found in the Apex and Commander, Gryphon's flagship amplifier and preamplifier, delivering 10% more power than its predecessor. New ultra-fast, low-capacitance transistors are employed, enabling superior performance both musically and on the test bench.

Features

» 2 x 333 Watts @ 8 ohms, 2 x 666 Watts @ 4 ohms, 2 x 1,100 Watts @ 8 ohms

» True Dual Mono Configuration

» Zero negative feedback

» Microprocessor-controlled 43-position volume control, only 1-2 resistors in series with the signal at any level

» Shunt regulators for optimal noise suppression

» Ten high-power transistors per channel

» Ultra-fast, low-capacitance pre-driver transistors

» Polypropylene capacitors for local power supply decoupling

» Optional PS3 MM/MC phono stage

» Optional DAC3 D/A module (inputs: 1 x USB, 2 x SPDIF, 1 x AES, and 1 x OPT)

» Ultra-short signal path

» Minimal internal wiring

» Four-layer printed circuit boards with 70µ copper

» Holmgren Dual Mono toroidal transformer

» Connectors mounted directly on the circuit boards to eliminate wiring and shorten the signal path

» Gold-plated Neutrik XLR connectors for two balanced inputs

» Gold-plated RCA connectors with Teflon insulation for two inputs and two single-ended outputs

» Custom gold-plated Gryphon binding posts

» Fixed-level AV-Throughput for seamless integration with home theater systems

» Source level matching

» 4.3-inch TFT touchscreen with 4mm reinforced front glass

» Intuitive menu structure

» 12Vdc link input and output

» Infrared receiver input

» Firmware upgradeable via USB 2.0 port on the back of the device

» Non-intrusive protection system

» Gain: +38 dB

» Bandwidth (-3dB): 0.1 Hz - 350 kHz

» Input impedance: 50(BAL)/30(SE) kOhm

» Output impedance: 0.015 Ohm

» Standby power consumption < 0.5 W

» Dimensions (W x H x D): 468 x 472 x 245 mm

» Weight: 50.6 kg

» Designed and manufactured in Denmark

» Aesthetics by Flemming E. Rasmussen

» Electronic design by Tom Møller

USED ​​PRODUCT IN PERFECT CONDITION AND WITH ORIGINAL PACKAGING. 2-YEAR AUDIO IMPACT WARRANTY.
