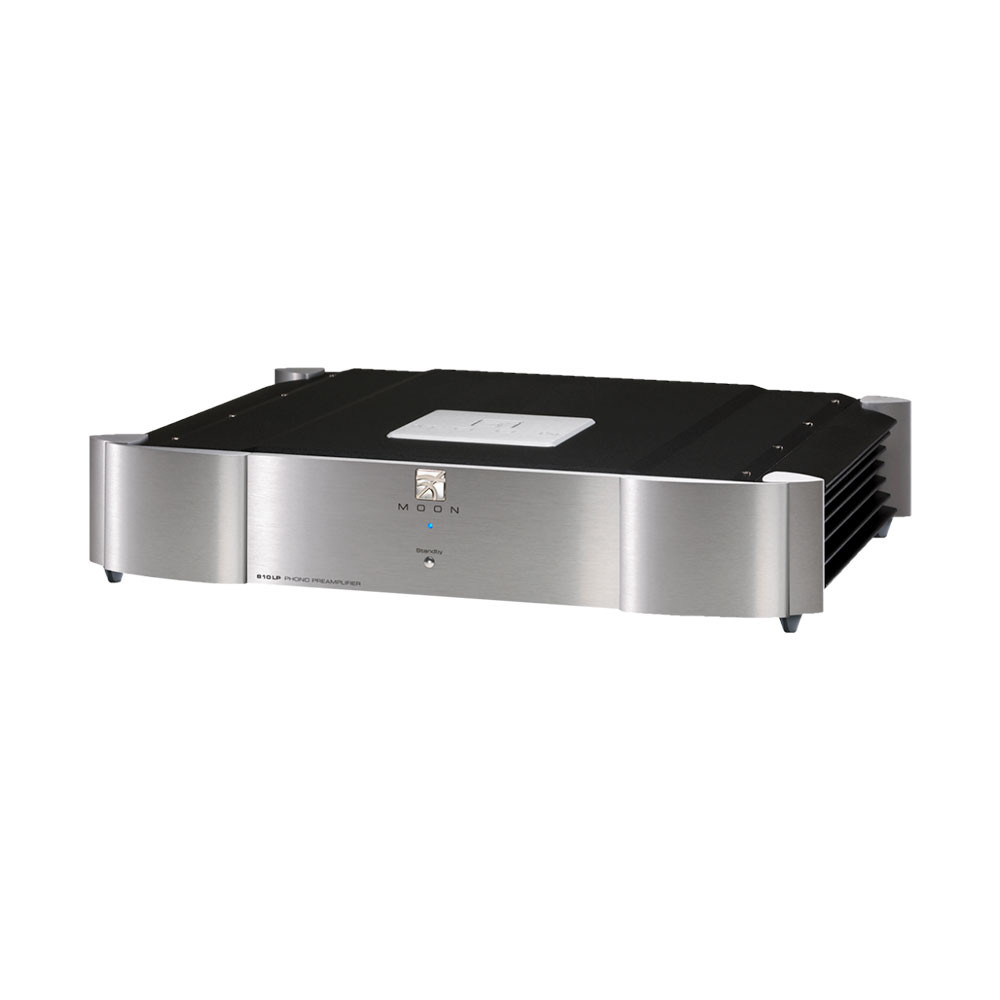

MOON 810LP – Reference Fully Balanced Dual Mono Phono Preamplifier

Description

The MOON 810LP by Simaudio is a no-compromise reference phono preamplifier created for the world's finest analog playback systems. Part of the prestigious Evolution Series, this fully balanced dual-mono phono stage has been engineered to extract every nuance of musical information from high-end MM and MC cartridges.

Its sophisticated fully differential dual-mono architecture provides exceptional channel separation, ultra-low noise performance, and an expansive soundstage. Each channel operates independently and benefits from MOON’s proprietary i²DCf (Independent Inductive DC Filtering) power regulation technology, ensuring extremely clean and stable power delivery.

The MOON 810LP offers outstanding cartridge matching flexibility with 64 impedance loading settings, 16 capacitance settings, and 16 gain adjustments ranging from 40dB to 70dB. Selectable RIAA and IEC equalization curves allow precise optimization for virtually any analog setup.

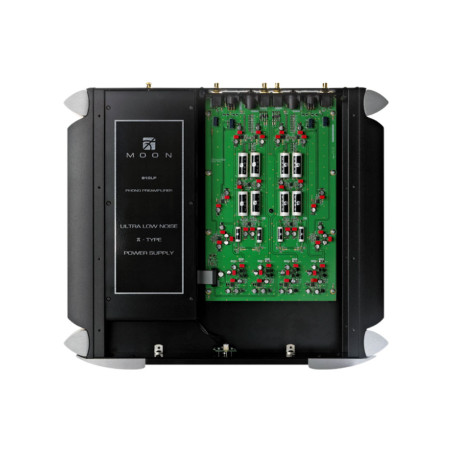

Premium internal construction includes carefully selected audiophile-grade components, precision polypropylene capacitors, a high-rigidity chassis, and MOON’s proprietary 5-point floating suspension system derived from its flagship components. The result is remarkably transparent, dynamic, and natural analog reproduction with an exceptionally low noise floor.

Key Features

• Fully balanced dual-mono phono preamplifier
• Compatible with MM and MC cartridges
• 64 impedance loading settings from 12.1 Ohms to 47 kOhms
• 16 capacitance settings from 0 pF to 1120 pF
• 16 gain settings from 40 dB to 70 dB
• Selectable RIAA and IEC equalization curves
• Proprietary i²DCf power regulation technology
• Fully differential circuit design
• 5-point M-Octave floating suspension system

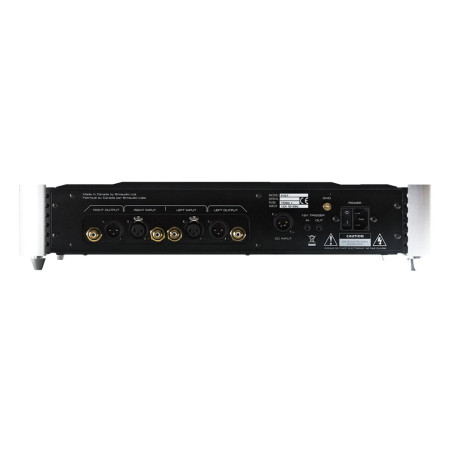

• Balanced XLR and single-ended RCA inputs and outputs
• 12V trigger IN/OUT
• Compatible with MOON 820S external power supply
• Reference-grade Made in Canada construction

Technical Specifications
