WIIM BAR

WiiM Bar – Hi-Fi 3.0.2 Dolby Atmos Soundbar with Integrated Streaming

The WiiM Bar is a next-generation soundbar designed to combine home cinema, music streaming and advanced connectivity in a single device. Thanks to its 3.0.2-channel acoustic system, 8 drivers, 4 passive radiators and 135 W of total power, it delivers a wide soundstage, clear dialogue and convincing overhead Dolby Atmos effects without necessarily requiring a traditional home theater system.

The design is equally focused on music playback: WiiM Bar integrates a complete streaming platform, Wi-Fi 6E, Bluetooth 5.4, Ethernet, support for major music services and control through the WiiM Home App. The result is an extremely versatile product, equally suited to movie viewing and everyday music listening.

Main Features

• 3.0.2 active soundbar with expansion capability up to 5.1.2
• Support for Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, DTS and DTS:X
• Acoustic system consisting of 8 drivers and 4 passive radiators
• 3 front midwoofers measuring 110 x 52 mm
• 3 front tweeters measuring 52 x 52 mm
• 2 top-mounted full-range drivers measuring 52 x 52 mm for height channels
• 4 passive radiators measuring 115 x 50 mm
• 135 W of total power
• 2.1" Full Color LCD touchscreen display
• Wi-Fi 6E tri-band 2.4 / 5 / 6 GHz
• Bluetooth 5.4 with LE Audio support via software update
• Ethernet connectivity
• HDMI eARC, optical input and Line In
• USB Audio In/Out and USB Host
• Streaming through the WiiM Home App and numerous music services
• Support for Spotify Connect, TIDAL Connect, Qobuz Connect, Google Cast Audio, AirPlay 2, DLNA/UPnP and Roon
• Clear Voice, AI Dialog Enhancement and Night Mode modes
• Adjustable equalizer and Smart Presets through the WiiM Home App
• Ability to create a WiiM Home Theater system up to 5.1.2 channels
• Voice remote control included

Three Elegant Finishes Available

The WiiM Bar is available in three different finishes, designed to complement a wide range of interiors and Home Cinema configurations:

• Matte White – a bright and discreet finish, ideal for modern and minimalist environments.
• Matte Black – an elegant and understated finish, particularly well suited to integration with televisions and Home Theater systems.
• Gloss Black – a brighter and more refined finish for those looking for a more sophisticated aesthetic.

The choice of finish does not affect the soundbar's technical characteristics or audio performance.

Immersive 3.0.2 Dolby Atmos Audio

The WiiM Bar uses a 3.0.2 architecture designed to create a wider and more immersive sound experience than a conventional stereo configuration. The three front channels handle dialogue, music and effects, while the two upward-firing drivers contribute to the reproduction of overhead effects typical of Dolby Atmos soundtracks.

The system includes three front midwoofers, three tweeters, two top-mounted full-range drivers and four passive radiators. The passive radiators contribute to low-frequency extension and acoustic pressure without requiring a separate integrated subwoofer.

Expandable up to a 5.1.2 Home Theater

The WiiM Bar can initially be used as a standalone 3.0.2 system and later expanded by connecting compatible WiiM devices. A wireless Home Theater system of up to 5.1.2 channels can be created by adding surround speakers and a compatible subwoofer.

This architecture allows you to start with a single soundbar and progressively build a more complete home cinema system without having to install new speaker cables for the surround channels.

Dolby Atmos, DTS and HDMI eARC

The HDMI eARC connection allows the WiiM Bar to be connected directly to a compatible television while handling high-quality audio content. PCM signals up to 24-bit / 192 kHz are supported, together with Dolby Digital, Dolby Digital Plus, Dolby Atmos, DTS, DTS-HD and DTS:X through HDMI eARC.

A digital optical input is also provided, supporting PCM signals up to 24-bit / 192 kHz, as well as the main multichannel formats supported through the optical connection.

Music Streaming and WiiM Home App

The WiiM Bar is much more than a soundbar for your television. The WiiM platform provides direct access to numerous music services and allows playback to be managed through the WiiM Home App.

Supported services and protocols include Spotify Connect, TIDAL Connect, Qobuz Connect, Google Cast Audio, AirPlay 2, DLNA/UPnP, Roon and Amazon Music, together with numerous other services available within the WiiM ecosystem.

Network connectivity is provided by tri-band Wi-Fi 6E and Ethernet, while Bluetooth 5.4 provides a simple and immediate connection with smartphones, tablets and other compatible devices.

Full Color Touchscreen Display

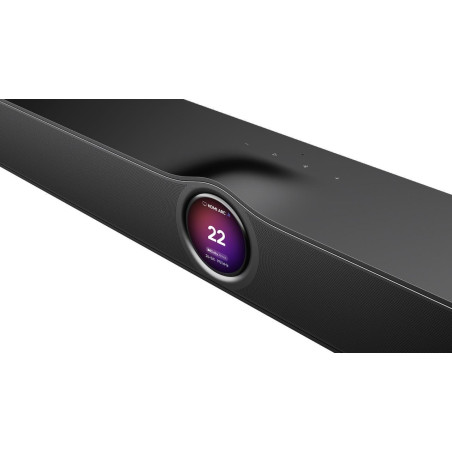

One of the most distinctive features of the WiiM Bar is its integrated 2.1-inch Full Color LCD touchscreen.

The display allows you to view playback information, album artwork, equalizer settings, Smart Presets, clock information and other data directly on the soundbar without necessarily having to open the smartphone application.

Clear Voice, AI Dialog Enhancement and Night Mode

For movies and television programs, the WiiM Bar provides dedicated modes designed to improve dialogue intelligibility. Clear Voice and AI Dialog Enhancement make voices easier to understand, while Night Mode reduces dynamic impact when listening at lower volume levels.

The integrated equalizer and Smart Presets also allow the sound character to be adapted to personal preferences and different types of content.

Complete Control and WiiM Integration

The WiiM Bar can be controlled through the WiiM Home App, the included remote control or compatible voice assistants. The application allows you to control volume, sources, streaming, equalization, presets and Home Theater configuration.

The soundbar can also be integrated with other compatible WiiM devices to create a synchronized multi-room system and distribute music throughout multiple rooms.

Why Choose the WiiM Bar

• 3.0.2 Dolby Atmos soundbar with 135 W of power
• Expandable up to 5.1.2
• 8 drivers and 4 passive radiators
• Support for Dolby Atmos, Dolby TrueHD, DTS and DTS:X
• HDMI eARC with support up to 24-bit / 192 kHz
• Tri-band Wi-Fi 6E and Ethernet
• Bluetooth 5.4 with LE Audio
• Complete music streaming platform
• 2.1" Full Color LCD touchscreen display
• Clear Voice, AI Dialog Enhancement and Night Mode
• Adjustable equalizer and Smart Presets
• Compatibility with AirPlay 2, Spotify Connect, TIDAL Connect, Qobuz Connect, Google Cast, DLNA/UPnP and Roon
• Integration with other compatible WiiM devices
• Three available finishes: Matte White, Matte Black and Gloss Black
• Remote control included

Technical Specifications
