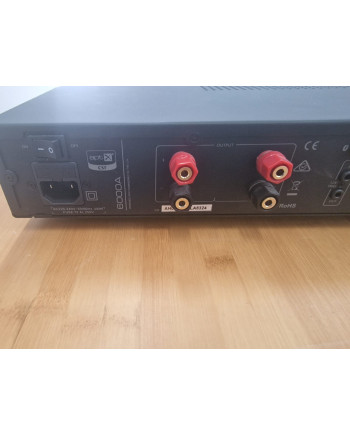

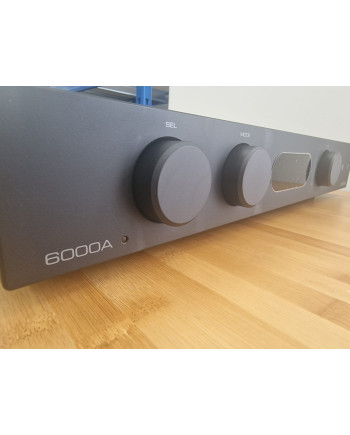

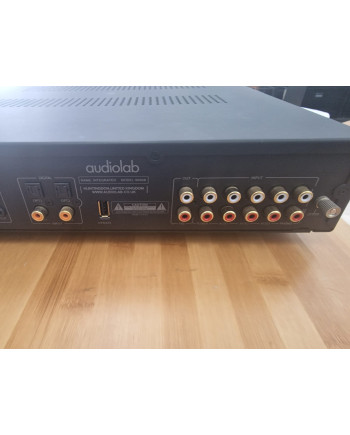

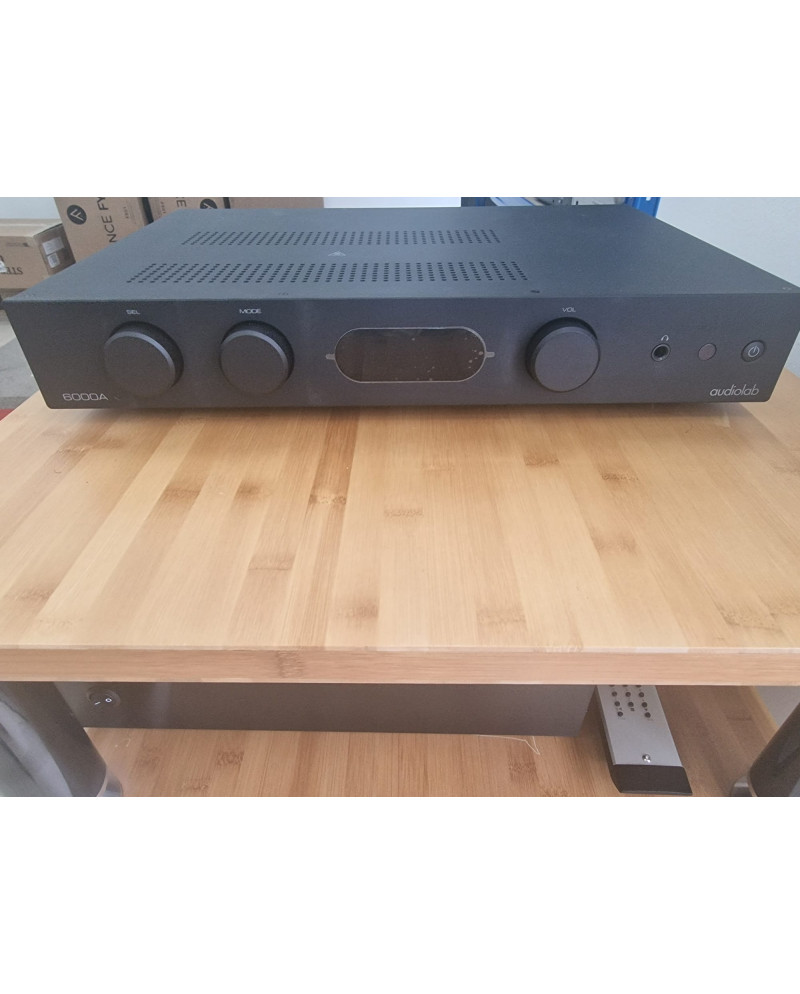

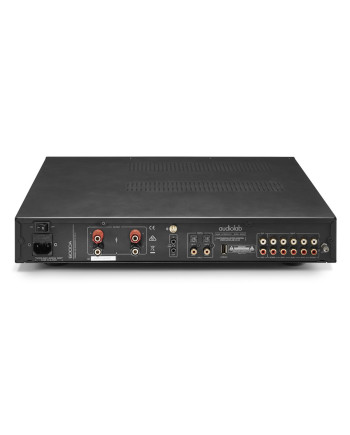

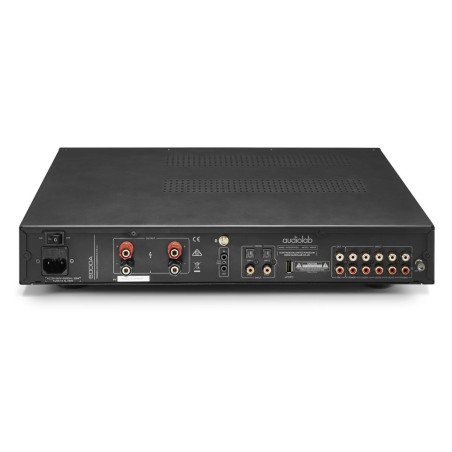

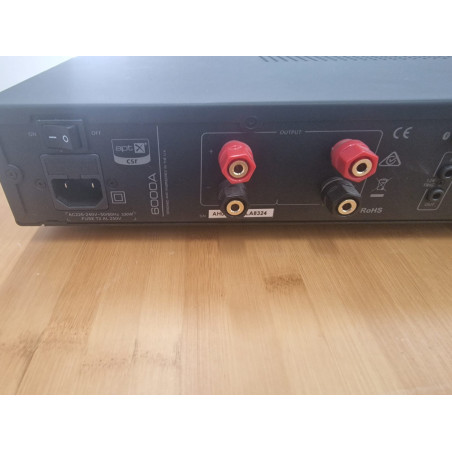

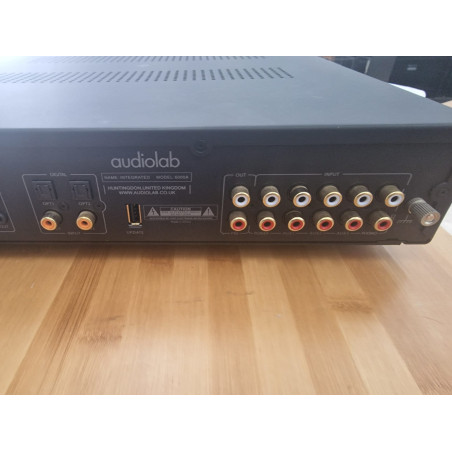

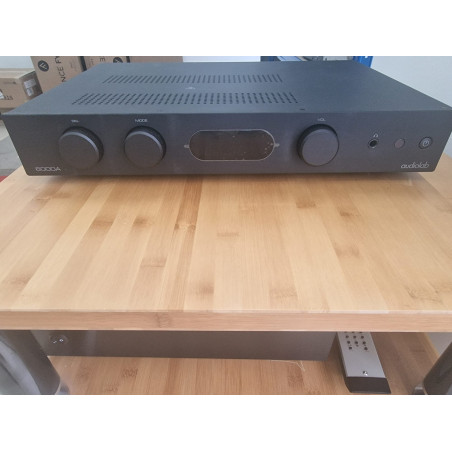

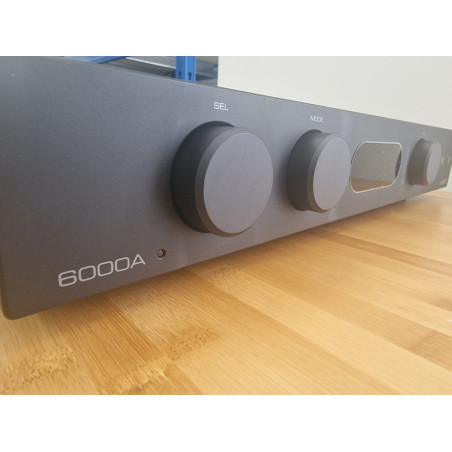

AUDIOLAB 6000A - USATO

Amplificatore integrato stereo 2 X 50 W (8 ohm), 2 X 75 W (4 ohm),

DAC ESS Sabre32 ES9018K2M Reference, Bluetooth, 1 ingresso Phono MM,

uscite pre out, 4 ingressi digitali, 4 ingressi analogici, distorsione armonica (THD)

minore di 0,003%, risposta in frequenza 20Hz-20kHz (± 0,1dB), telecomando,

dimensioni 445 x 65,5 x 300mm, peso 7.8kg

Specifications

Gain (max.) +8dB (Line)+55dB (Phono MM)

Input Sensitivity 720mV (Line, Volume = 0dB)3.1mV (Phono MM, Volume=0dB)

Input Impedance 10K (Line)47K//100pF (Phono MM)

Total Harmonic Distortion (THD) < 0.0004% (Line, 1KHz @ 2V, Volume = 0dB)

Frequency Response 20Hz-20kHz (+/-0.1dB)

Output Voltage 2.3V max. (Volume = 0dB)

Output Impedance 120 ohm

Signal-to-Noise Ration (S/N) > 110dB (Line, A-weighted)

>76dB (Phono MM, A-weighted)

DAC

D to A converter ES9018K2M

Total Harmonic Distortion (THD) < 0.0006% (1KHz @ 0dBFS)

Output level (0dBFS, 1KHz) 2.05V

Max. Sampling Frequency 192KHz

Signal-to-noise ratio (S/N) > 112dB (A-weighted)

Digital Filters Fast Roll-off , Slow Roll-off , Minimum Phase

Power Amplifier Section

Gain +29dB

Rated Max. Power Output 2 X 50W (8 ohm, THD<1%)2 X 75W (4 ohm, THD<1%)

Frequency Response 20Hz-20kHz (+/-0.3dB)

Input Sensitivity 720mV

Total Harmonic Distortion (THD) <0.003% (1kHz @ 40W/8ohm)

Signal-to-Noise ratio (S/N) > 110dB (A-weighted)

Max. Output Current 9A

Headphone Amplifier

Total Harmonic Distortion (THD) < 0.01% (1kHz, 50mW)

Output Impedance 2.35 ohm

Load impedance 20-600 ohm

General

Standby Power Consumption <0.5W

Power Requirements 240V ~ 50 - 60Hz

230V ~ 50 - 60Hz

115V ~ 50 - 60Hz

100V ~ 50 - 60Hz

Dimensions (mm) (W x H x D) 445 x 65.5 x 300

Carton Size (mm) (W x H x D) 512 x 467 x 146

Weight 7.8kg (Net)

PRODOTTO USATO, CONDIZIONI ECCELLENTI. 1 ANNO DI GARANZIA AUDIO IMPACT.
