QUIK LOK JUST/KEY

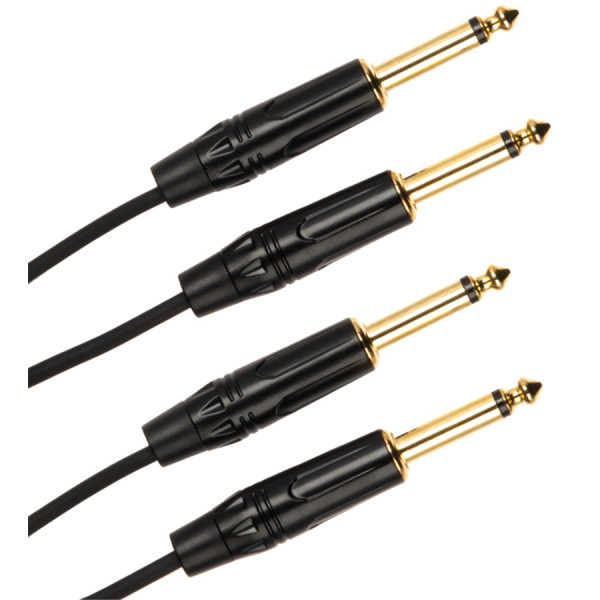

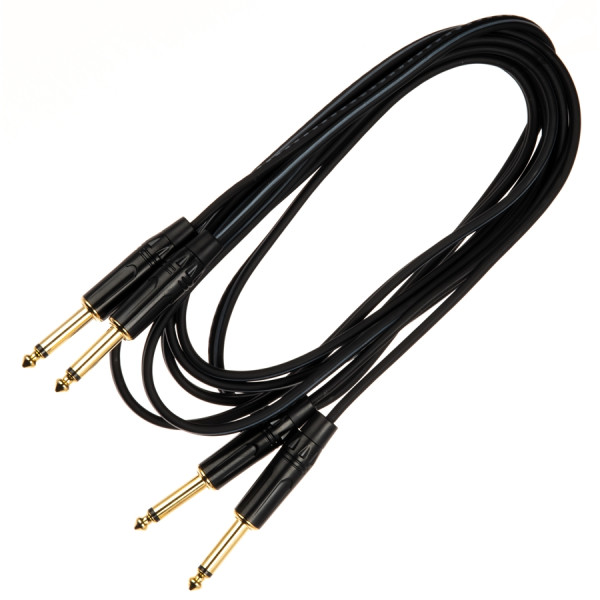

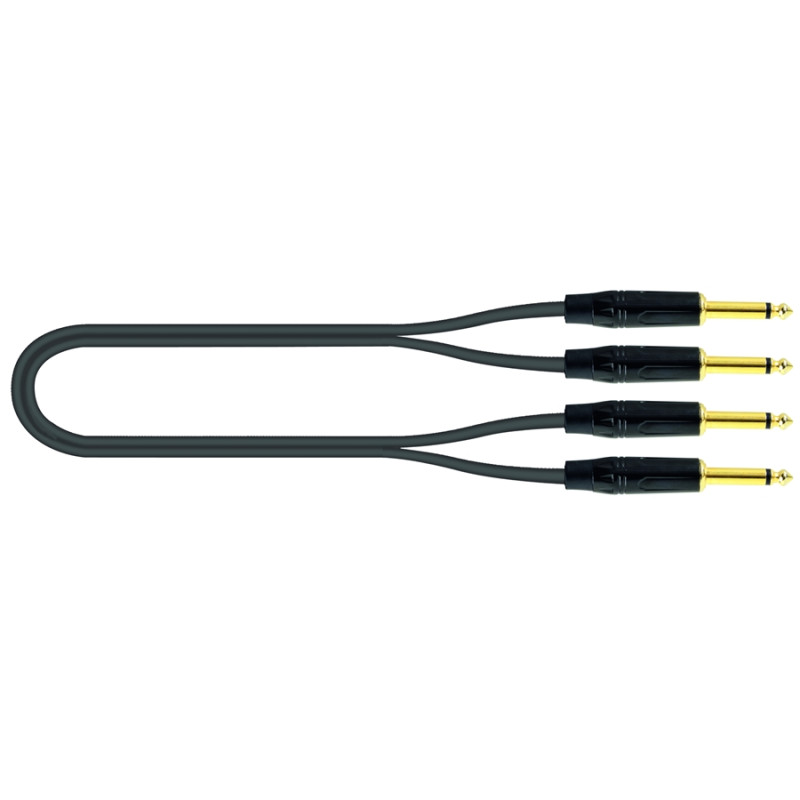

KEY 6 is the unbalanced instrument cable with four 6.3mm TS (Mono) Jack connectors in black finish. Included in the JUST series, the KEY cables represent the top models among the Made in China cable lines produced by Quik Lok and are particularly suitable for everyday use with your pedals, keyboards or other devices that require stereo input and output with separate left and right channels.

KEY cables have a conductor cross section of 0.22 mm² and 20 copper wires of 0.12 mm. The PVC sheath of the external covering of the cable guarantees a comfortable grip when rewinding the cable after use as well as guaranteeing a good degree of protection against damage from impact and bending. The specifications of the cable itself allow linear sound transmission in order to allow keyboards or all your effects to convert the effected signal in the best way during concerts, recording situations in home recording or during the studio.

SPECIFICATIONS

External covering: PVC

Conduction area: 0.22 mm²

AWG: 22

Conducting material: Copper

Conductor composition: 20 x 0.12 mm

Conductor resistance at 20°: <91 Ohm/km

Shielding: Spiral wound copper braid (0.12 x 32)

Electrical capacitance: 95 pF/m

Single cable diameter: 4mm

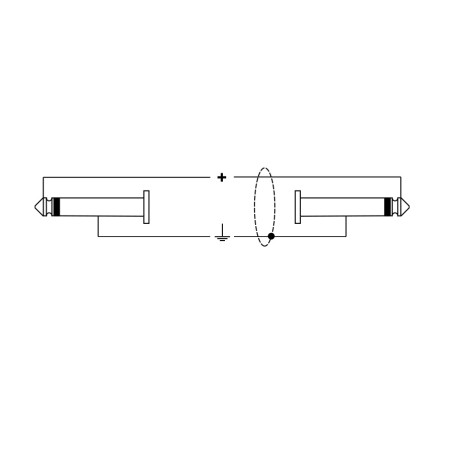

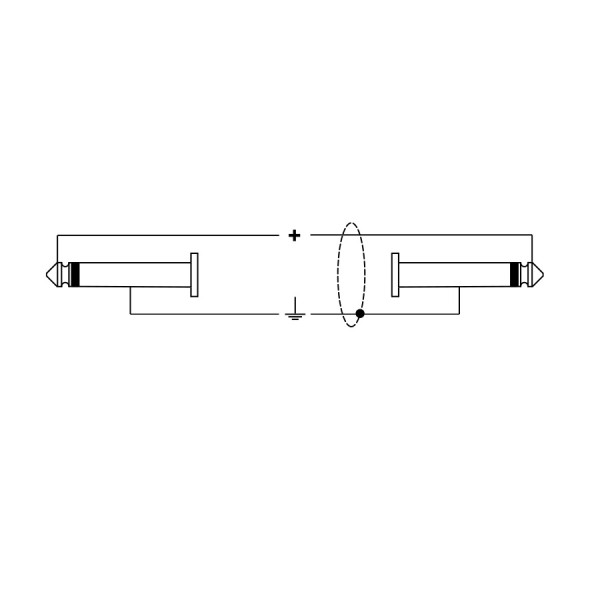

Connector Configuration: 4x TS Jack (Mono)

Conductor insulations: HDPE 1.6 mm and cotton
