ROTEL MICHI X3 S2

Michi X3 S2 integrated amplifier

The Michi X3 Series 2 integrated amplifier offers uncompromising audio performance, housed in a sleek, modern design.

Rotel Michio X3 Series 2 delivers 2x200 Watts of Class AB power into 8 ohms, always maintaining precision and detail, whatever the input used, analog, XLR, digital, USB, Bluetooth apt-X or Phono MM.< /p>

Digital audio is reproduced using an ESS SABER ES9028PRO 8-channel precision DAC, configured to dedicate 4 channels to each of the left and right stereo channels, reducing background noise and distortion for the benefit of an aural imaging wide and extensive.

The elegant design of Michi X3 Series 2 adapts without problems to any environment, without penalizing the emitted power which reaches 200 watts per channel.

There are many music sources that can be connected, both in analogue RCA, balanced XLR, MM phono input, aptXTM HD bluetooth, coaxial and optical.

PC-USB input supports PCM (32-bit 384kHz) and Quad DSD (11.2MHz) files with full MQA hardware decoding up to 24-bit 384kHz.

Michi X3 Series 2 is built for music lovers and audiophiles: every aspect of its design, from engineering to construction has been meticulously refined to deliver outstanding performance.

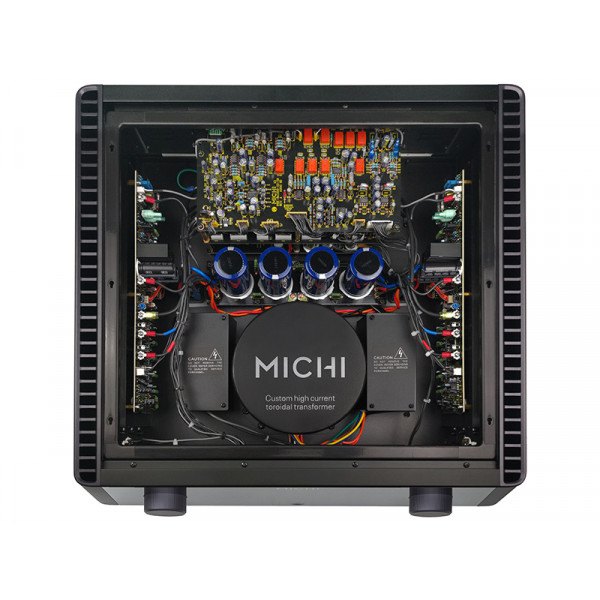

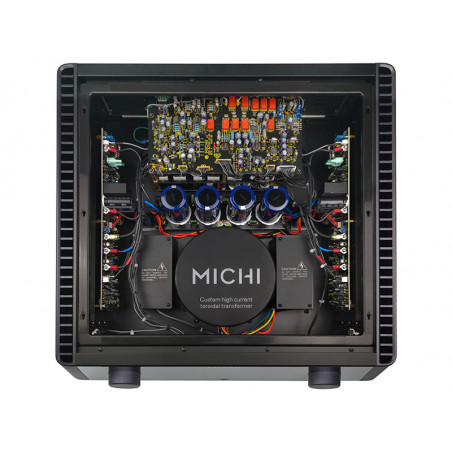

An in-house oversized toroidal transformer powers isolated digital, analog, and high-current amplifier circuits, further reducing electrical noise and interference.

Operating and configuring the X3 Series 2 is simple thanks to the infrared remote control, front panel controls and large graphical display.

Rotel-designed dual platinum-plated speaker binding posts allow speakers to be bi-wired.

A 6.35mm headphone jack is available directly on the front panel for private listening.

Finally, the RS232 and Ethernet connections ensure full compatibility with automation and control systems.

Main features:

Integrated Class AB amplifier with power of 2x200W into 8 ohm and 2x350W into 4ohm ESS SABER ES9028PRO 8-Channel DAC (32-bit 768kHz) configured in STEREO

Inputs: Coaxial (3), Optical (3) and Analog RCA (3)

PC-USB input with DSD 4X decoding and MQA rendering

Bluetooth aptXTM HD and AAC

MM (Moving Magnet) Phono input

XLR balanced input

Oversized toroidal transformer, developed and built by Rotel, high current output for exceptional bass energy, while maintaining control and precision in the smallest details

High resolution TFT front display, adjustable to various functions and IP and RS232 indications for control systems

Remote control

Technical characteristics

Continuous output power 200W/CH (8Ω) 350W/CH (4Ω)

Total harmonic distortion (THD): <0.008%

Frequency response

Line Inputs: 10HZ - 100KHZ (+0DB, -0.4DB)

Digital Inputs: 20HZ - 20KHZ (0 ± 0.4DB)

Phono Input: 20HZ – 20KHZ (+0DB, +0.4DB)

Signal-to-Noise Ratio (A-WEIGHTED IHF)

Line inputs: 102DB

Digital Inputs: 102DB

Phono input: 80DB

Intermodulation Distortion (60HZ:7KHZ, 4:1): <0.03%

Damping factor (20HZ – 20KHZ, 8Ω): 350

Channel separation: >55DB

Input sensitivity

Line Inputs (RCA): 340MV

Line Inputs (XLR): 540MV

Phono Input (MM): 5.2MV

Input Impedance

Line Inputs (RCA): 100KΩ

Line Inputs (XLR): 100KΩ

Digital Inputs: 75Ω

Phono Input (MM): 47KΩ

Input Overload

Line Inputs (RCA): 3.5V

Line inputs (XLR): 5.5V

Phono input: 60MV

Preamplified output level: 1.9V

Preamplified Output Impedance: 100Ω

Tone controls: ±10DB AT 100HZ / 10KHZ

Electrical/Optical Input Formats

SPDIF LPCM (UP TO 24-BIT/192KHZ)

PC-USB USB Audio Class 1 (up to 24/96)

USB Audio Class 2 (up to 32/384) driver installation required

DSD and DOP support

MQA and MQA Studio support

Roon Tested

Dimensions (WxHxD): 485x150x452mm

Weight: 28.9 Kg
