MOFI ULTRAPHONO

MoFi UltraDeck is the Californian brand's top phono pre-amplifier. In addition to being a refined preamplifier module for turntables, it is also a headphone amplifier of rank. Thanks to precise volume adjustment – using a handy knob – you can enjoy your music at any time of the day or night. Do you love vinyl? Without turning on the whole system, you can respect the nature of the vinyl with elegant and minimal electronics that will leave the flavor of each track unchanged.

Description

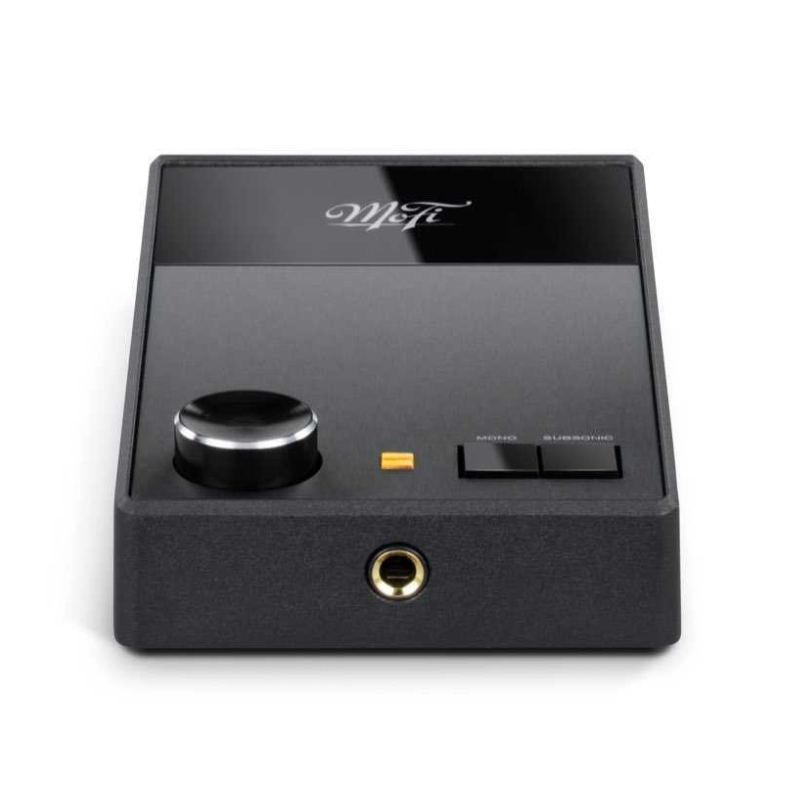

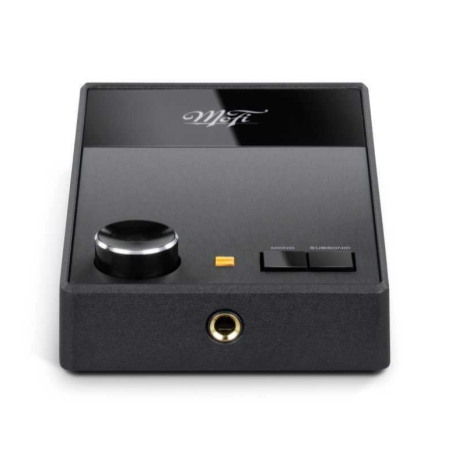

MoFi UltraPhono: The top phono pre-stage with headphone amplifier

A great turntable deserves a great pre-amp module. The MoFi UltraPhono replicates the high transparency across the full bandwidth demanded by Mobile Fidelity Sound Lab engineers. Tim De Paravicini, the lead designer of Mobile Fidelity's Ultra Analog Gain2™ cutting system, supervised the internal circuit design to ensure that your home analog system faithfully reproduces the music hidden in the grooves of your LPs. UltraPhono also includes an audiophile-grade Class A headphone amplifier for an intimate and true listening experience.

Class A headphone amplifier

UltraPhono includes a powerful Class A headphone amplifier perfect for quiet nights when you want to keep your listening private. And with a 31-step volume control built right into the unit, all you need to do is plug your headphones directly in and crank up the volume! It's the simplest way to get high fidelity playback from vinyl without speakers and electronics.

MoFi UltraPhono: Adjustable gain and load

With selectable gain and load, you'll be able to use the Mofi UltraPhono by adapting it to almost any moving magnet or moving coil cartridge on the market. A set of convenient toggle switches can be found on the underside of the unit to make adjustments quickly without the need for tools.

Tip: Filtered AC current

In HiFi listening chains, the various devices must be consistent with each other to get the best result. Amplifiers and delicate electronics should always be powered with possibly controlled and filtered electric current. Any noise induced by sudden changes in the home network or in the macro living area is reflected in voltage oscillations - even important and harmful to the device - which in the best case are detrimental to listening pleasure and the absolute performance of our devices . We strongly recommend the use of shielded power cords and good quality power strips with decent to good quality amplifiers and audio electronics. These improve the life and performance of the connected devices and also of the rest of the appliances in the house since they do not filter disturbances and discharges but, symmetrically, do not emit them. Toroidal electrical insulators for HiFi are also recommended to obtain the maximum in terms of listening and safety.

TECHNICAL SPECIFICATIONS

MoFi UltraPhono Specifications

Adjustable gain from 40dB to 66dB

THD <0.006% (MM) / <0.055% (MC)

Load Impedance (MM) 47,000 ohms

Load Impedance (MC) 75, 100, 500, 1k, 10k, 47k Ohms

Input capacitance 100 pF

MoFi UltraPhono Headphone Amplifier

Headphone Output 8V RMS Max, 62 ohms, 1.5w/ch

Volume control 31 steps, 2dB per step, 62dB range

Mute switch -90dB

Minimum impedance > 10 Ohms

Features Mofi UltraPhono

Selectable gain for MM or MC 40dB, 46dB, 60dB, 66dB

Adjustable loading from 75Ω to 47kΩ

Class A headphone amplifier

Switchable mono mode

Subsonic filter

External power supply
