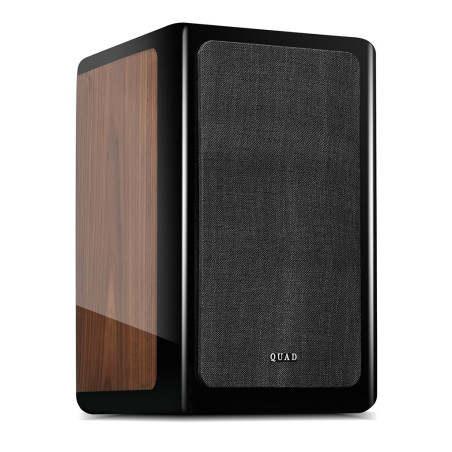

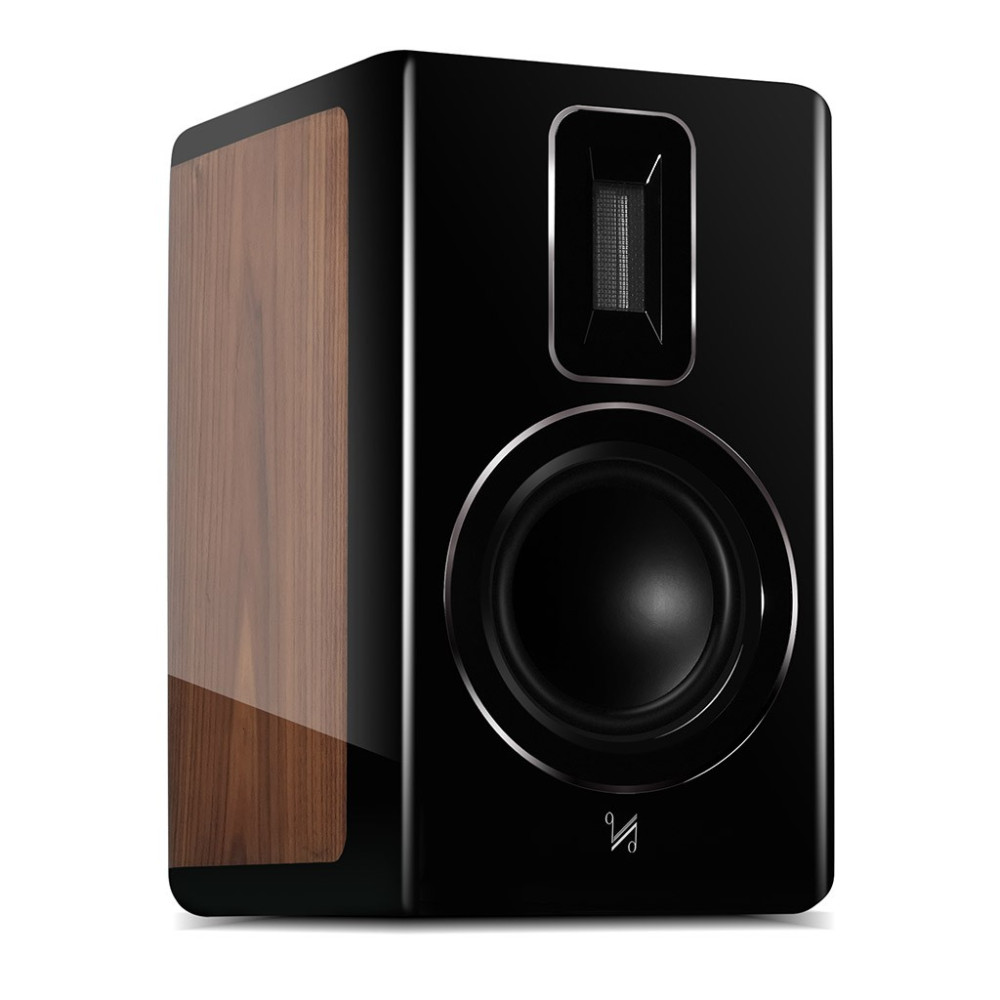

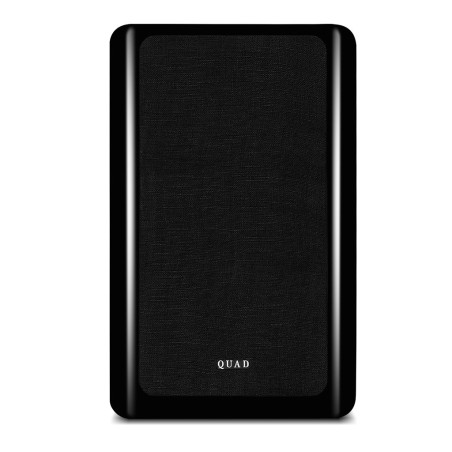

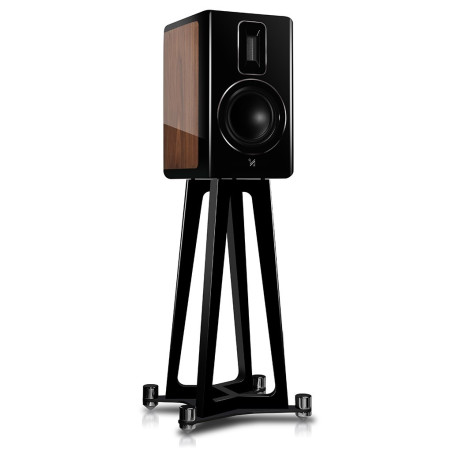

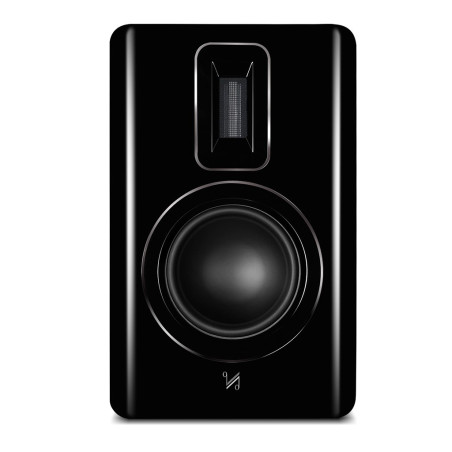

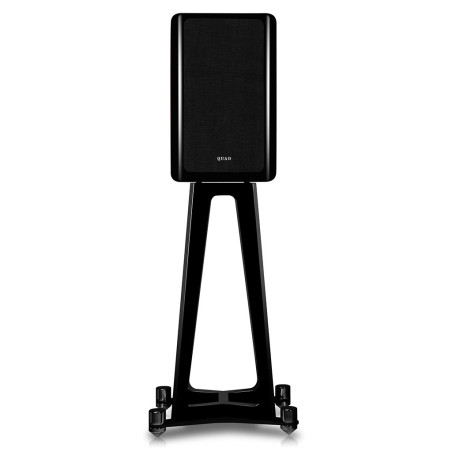

Quad Revela 1 Hi-End Bookshelf Speakers – True Ribbon Tweeter, 2-Way Bass Reflex

Quad Revela 1 is a high-end standmount loudspeaker designed to deliver exceptional audio performance, combining Quad’s engineering heritage with advanced modern technologies. Ideal for premium hi-fi systems, it offers a natural, detailed and highly accurate sound reproduction.

At the heart of the design is the refined True Ribbon tweeter, derived from Quad’s iconic ribbon technology, delivering ultra-fast response and crystal-clear high frequencies with extremely low distortion. The 165 mm mid/bass driver features Quad’s proprietary Reveal cone technology, ensuring optimal rigidity, low coloration and precise control.

The cabinet incorporates PROS (Panel Resonance Optimisation System), a multi-layer structure engineered to minimize unwanted vibrations and resonance, resulting in a cleaner and more accurate sound. The rear bass reflex port enhances low-frequency extension, delivering deep and controlled bass performance.

Key Features

• High-end bookshelf (standmount) loudspeakers
• 2-way bass reflex design
• Quad True Ribbon tweeter for ultra-detailed highs
• 165 mm mid/bass driver with Reveal cone technology
• Precision Butterworth crossover for optimal phase response
• PROS cabinet construction for reduced resonance

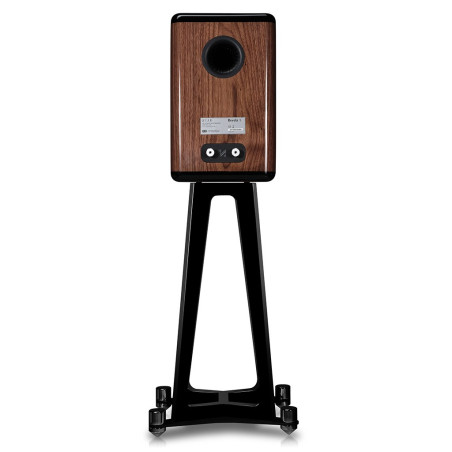

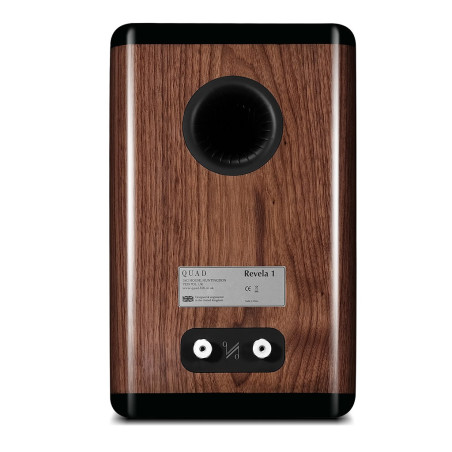

• Rear-firing bass reflex port
• Premium high-gloss finishes (Piano Black / Piano Walnut)

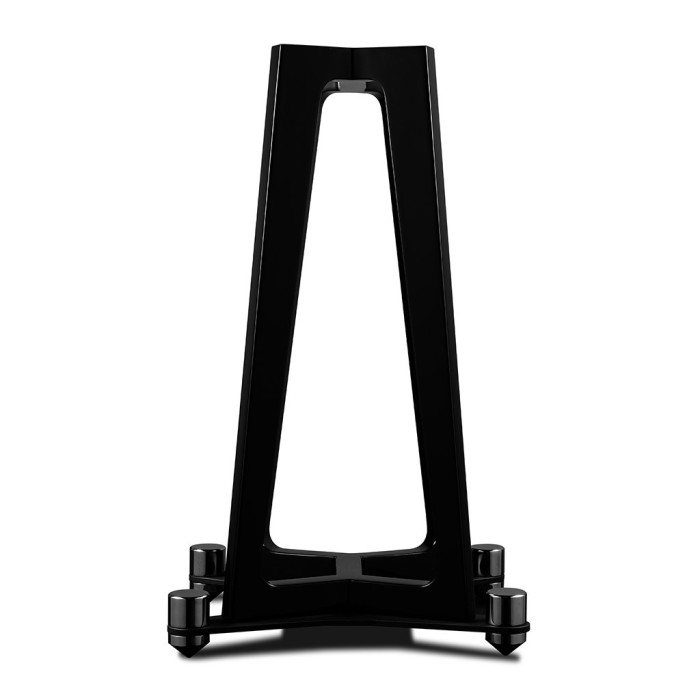

• Optional dedicated stands available

Technical Specifications

Configuration

• Type: Bookshelf / Standmount speaker
• System: 2-way bass reflex

Drivers

• Tweeter: True Ribbon (27 x 60 mm)
• Mid/Bass: 165 mm with Reveal cone

Performance

• Frequency response: 54 Hz – 24 kHz (±3 dB)
• Low-frequency extension: 40 Hz (-6 dB)
• Sensitivity: 86 dB (2.83V / 1m)
• Nominal impedance: 6 Ohm
• Minimum impedance: 4.1 Ohm
• Maximum SPL: 102 dB

Recommended Amplifier Power

• 30 – 120 W
• Crossover frequency: 2.9 kHz

Construction

• PROS multi-layer cabinet design
• Reinforced structure for vibration control
• Rear bass reflex port

Dimensions & Weight

• Dimensions (W x H x D): 246 x 395 x 312 mm
• Weight: 24.6 kg (pair)

Why Choose Quad Revela 1

The Quad Revela 1 is the perfect choice for audiophiles looking for compact yet high-performance speakers. The ribbon tweeter delivers exceptional clarity and detail in the high frequencies, while the Reveal cone woofer ensures tight, controlled and natural bass reproduction.

Ideal for medium-sized listening rooms, these speakers provide a wide, precise soundstage and an engaging listening experience, making them perfect for high-resolution music and critical listening.

STANDS NOT INCLUDED
