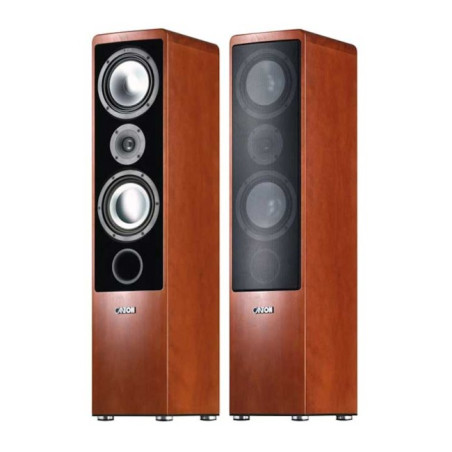

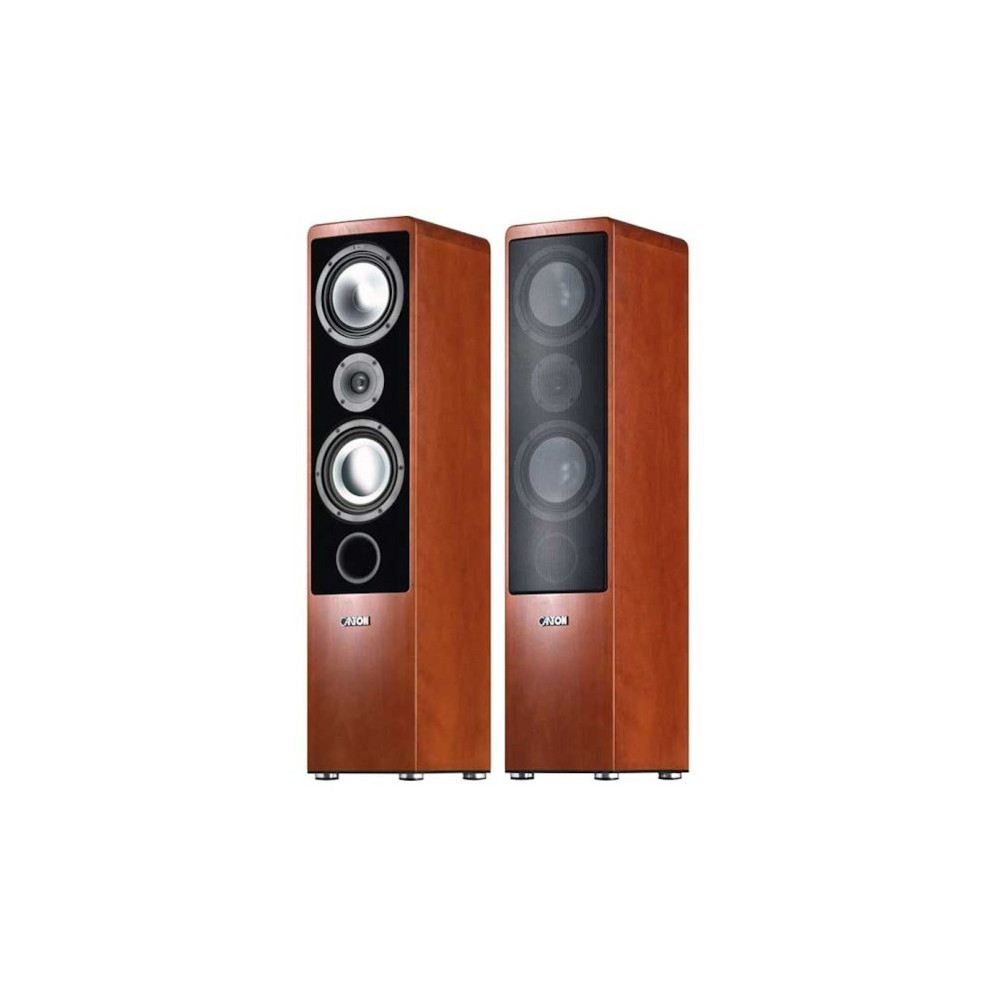

CANTON ERGO 670 DC CHERRY - PAIR

Aluminum-Manganese Tweeter System

The proven aluminum-manganese tweeter system transmits music signals up to 40,000 Hz. An aluminum front plate acts as a waveguide and supports the system's radiation behavior.

Aluminum Cone

The Ergo Series cone systems feature lightweight aluminum cones and state-of-the-art surround wave technology. Three precisely defined surround arcs ensure balanced force symmetry in the incoming and outgoing oscillation behavior.

Housing Geometry

With a large baffle and cutting-edge technology, Ergo speakers feature woofers with Canton's patented surround wave technology for maximum excursion.

Connection Terminal

Thanks to the bi-wiring/bi-amping connection terminals, the high/midrange can be controlled separately from the low range. Robust 24-karat gold-plated screw terminals ensure optimal signal transmission.

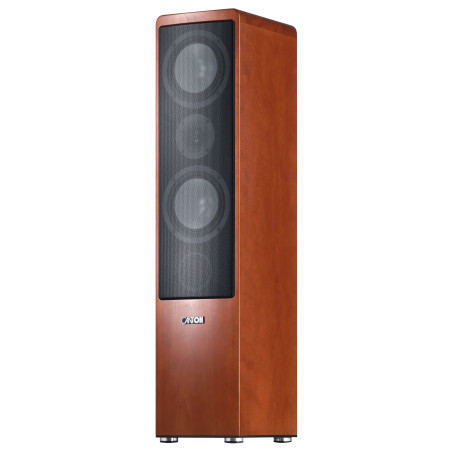

Front Cover

The high-quality aluminum grille gives the Ergo series its own unique look. It provides the necessary protection for the speaker systems without affecting the sound of the speakers.

Surface

Visually, the timeless design is reflected in the high-quality real wood veneers, the rounded cabinet corners typical of Ergo, and the classic chassis layout: the tweeter and midrange systems above, and a powerful bass below with a front-firing bass reflex tube. Thanks to the front-firing bass reflex system, it can be placed close to the wall without any problems.

Loading

Bass Reflex

Efficiency

87.5 dB

Crossover Frequency

3000 Hz

Minimum Impedance

4 ohms

Nominal Impedance

8 ohms

Maximum Power

170 W

Min. Power

110W

Maximum frequency response

40,000 Hz

Min. frequency response

25 Hz

Treble unit

25 mm

Bass unit

2 x 174 mm

Way

2.5
