T+A PA 3100 HV SILVER/BLACK

Description

The Integrated Amplifier

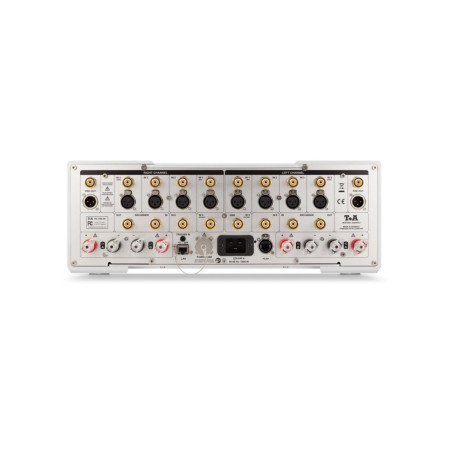

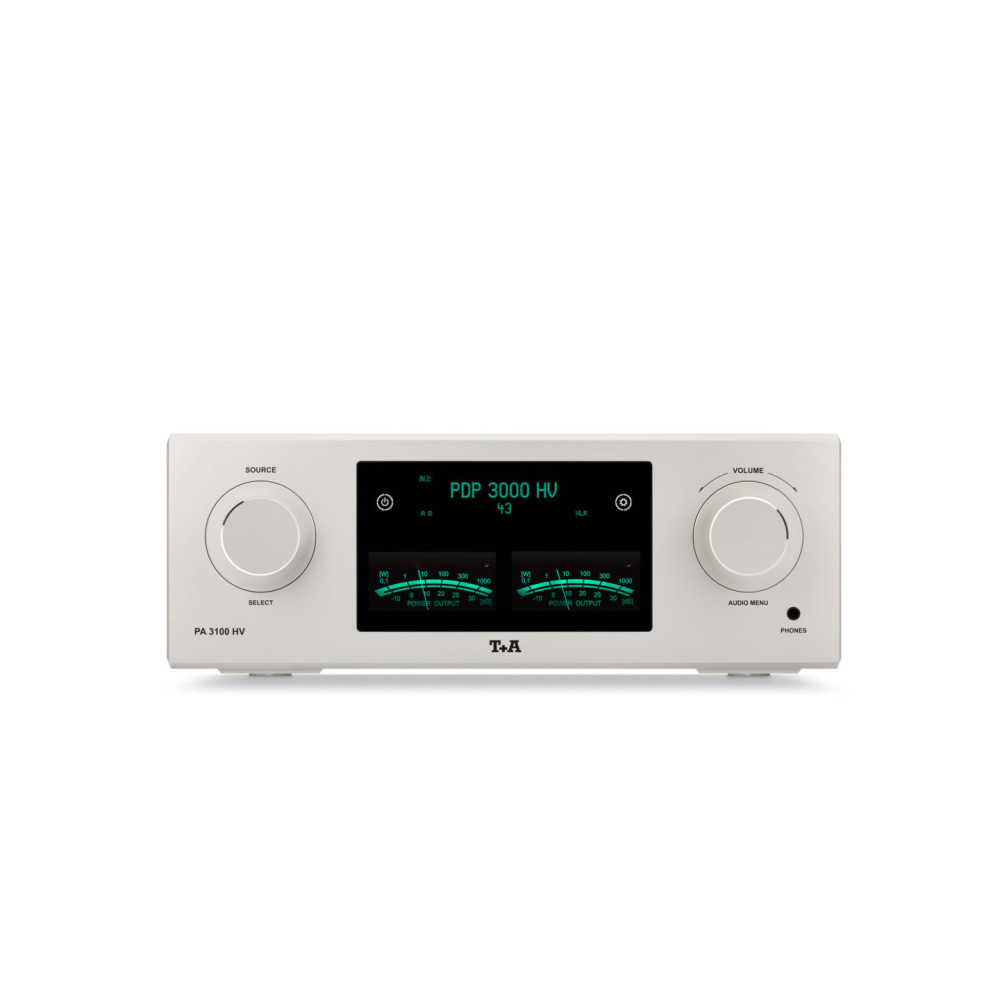

The PA 3100 HV is a further development of the PA 3000 HV, and most of its subassemblies are identical. The immediately noticeable difference is the pair of VU meters on the front panel, which display the power generated per channel in logarithmic form in watts into 4 ohms. A revision of the preamplifier section (DC coupling) has further improved sound quality. Another development is the redesigned analog network section and voltage supply, similar to that of the PA 3000 HV. This allows the connection of the additional PS 3000 AT network section to further increase the stability and performance of the overall power supply system. The additional unit provides an additional 1800 watts of power, allowing the system to effortlessly control even the most demanding speakers, enabling them to deliver the best possible sound quality. The PA 3000 HV and PA 3100 HV can also be optionally equipped with high-end phono preamplifier modules featuring different circuit topologies to accommodate MM or MC systems. It is also possible to install the analog signal processor module developed for the P 3000 HV to provide separate tone and volume functions per channel. The all-metal F3001 infrared remote control is included as standard.

As with the P 3000 HV, the circuit topology is based on a differential cascode amplifier with individually selected audio J-FET transistors and fully discrete stages without operational amplifiers (op-amps). This circuit layout and the quality of the components used require virtually no overall negative feedback. The high operating voltage of the HV technology is the key to excellent linearity combined with an extremely wide dynamic range: signals up to 60 Vss can be processed without distortion. In the HV series, switching and signal regulation functions are performed by gas-tight, encapsulated gold-contact relays, completely immune to contact problems caused by corrosion, dust, etc., and are not affected by aging even after many years of operation. The preamplifier also uses bistable relays, which require no permanent coil current, eliminating any negative inductive effects on audio signals. Direct integration of the relays into the circuit minimizes signal paths, and the connecting cables required for conventional volume potentiometers are no longer necessary. The volume control is assembled using discrete precision resistors and gold-contact relays. The result is absolutely precise channel matching, free of distortion and hiss.

Specifications

Pre-amplifier stage

Frequency response + 0 / – 3 dB 0,5 Hz –300 kHz

Signal / noise ratio 105 / 110 dB

Total harmonic distortion < 0,001%

Intermodulation < 0,001 %

Channel separation > 90 dB

Nominal input sensitivity High level (RCA) 7 x 250 mVeff ... 6 Veff / 20 kOhms

Nominal input sensitivity Balanced (XLR) 4 x 500 mVeff ... 12 Veff / 5 kOhms

Outputs

Headphones 50 Ohms

1 x Recorder 250 mVeff / 100 Ohms

PRE out RCA nom 1 Veff, max 9,5 Veff / 50 Ohms

PRE out XLR nom 1,45 Veff, max 19,6 Veff / 50 Ohms

Output stage

RMS output per channel into 8 Ohms 300 Watts

RMS output per channel into 4 Ohms 500 Watts

Peak output into 8 Ohms 380 Watts

Peak output into 4 Ohms 700 Watts

Power bandwith 1 Hz – 150 kHz

Frequency response + 0 / – 3 dB 0,5 Hz – 180 kHz

Slew rate 60 V/µs

Damping factor > 65

Signal / noise ratio > 115 dB

Total harmonic distortion < 0,03 %

Reservoir capacity 120000 µF

Mains / Accessories / Dimensions

Mains 110 V/60 Hz or 220/240 V/50 Hz Standby < 0,5 W Remote control F 3001 Features Trigger input +5 ... 20V for external switching-on Input 4 can be configured in surround mode (Surround pass-through) connectivity for additional PS 3000 HV LAN connector for home-automation systems

Optional Accessories PS 3000 HV Power Supply | PH HV MM oder MC phono module | APM signal processor module | Power Three HD (Carbon) | Power Bar | Audio Quad (Carbon) | Speaker Hex (Carbon) HV-Individual finish (Individual colours on request)| IP control

Dimensions (H x W x D) 17 x 46 x 46 cm Weight 38 kg

Finishes Case: silver laquer 47 or titanium laquer 64

Heat sink: black 42

Technical modifications reserved
