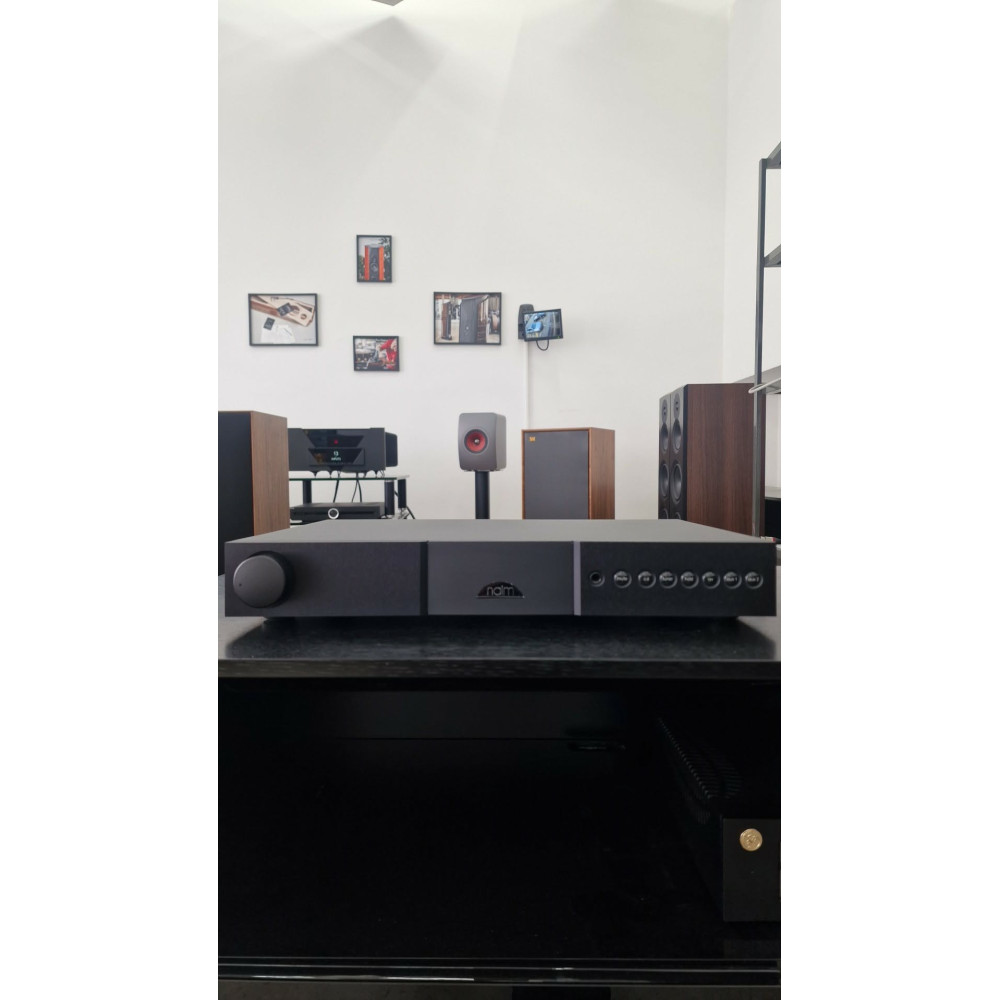

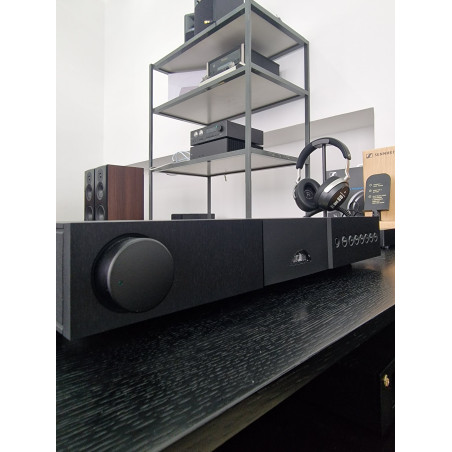

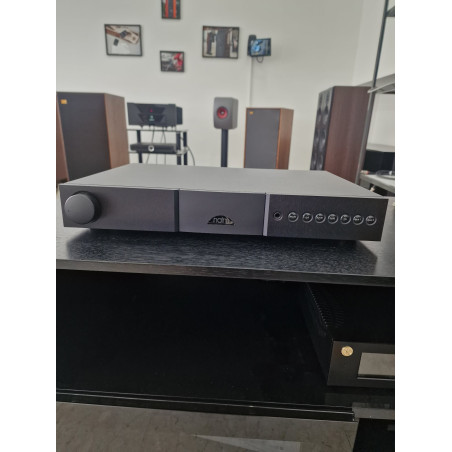

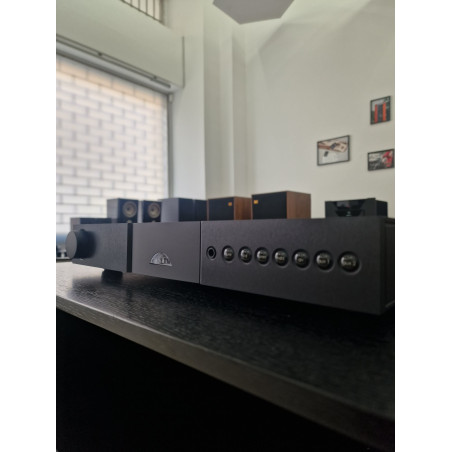

NAIM NAIT XS2 - USED

USED PRODUCT, EXCELLENT CONDITION. 1 YEAR AUDIO IMPACT WARRANTY.

70W Integrated Amplifier, Remote Control, 6 Analog Inputs, 1 Headphone Output with Class A Headphone Amp, Powered Input for use with StageLine or SuperLine Phono Stages. Upgrade with FlatCap, HiCap or SuperCap External Power Supplies. Requires Snaic 5 Cable (included with Flatcap and Hicap) and Snaic 4 Cable.

The Nait XS2 is a high-performance integrated stereo amplifier that combines a preamplifier with six analog line inputs and a 70 Watt per channel power amplifier. The Nait XS 2 can be controlled either with the remote control or with the volume, mute and input selection buttons on its front panel.

The Nait XS 2 remote control is described in Chapter 18 of this manual. The 6.3 mm jack socket on the front panel allows the use of headphones.

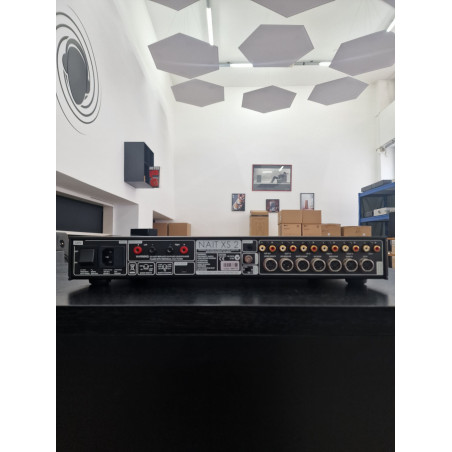

Different types of power supplies, preamps and alternative or additional amplifiers can be connected to the Nait XS 2. The figures in chapter 11 illustrate some of these possible connections. If you do not use alternative power supplies or amplifiers, the Nait XS 2 preamp/power supply link connector, supplied as an accessory, must be inserted into the “preamp out” and “power amp in” sockets on the rear panel.

Your Nait XS 2 must be installed on a stand specifically designed for this purpose. Do not install it on top of other equipment. Take special care to install the unit on a horizontal surface. The amplifier must be installed in its final position before connecting the cables and switching on. Before switching on, make sure the volume is at zero.

Power Output:

70W + 70W RMS into 8 ohms (100W + 100W into 4 ohms)

Inputs:

6 analogue line inputs suitable for 2V sources (0.5 to 7.0V)

Headphones:

Front panel 6.3mm (1/4”) jack socket suitable

for headphones from 16Ω to 1kΩ

Auxiliary Power Output:

+24V on “aux 2 in & pwr” for Naim phono stages

Fixed line outputs:

“av out” and “hdd out”

Variable line outputs:

“sub out” and “pre-amp out”

Idle power consumption:

16VA

Dimensions (H x W x D):

70 x 432 x 301mm

Weight:

8.4kg

Power supply:

100V, 115V or 230 V, 50/60 Hz

Audio Inputs

Input Sensitivity

130 mV

Input Impedance

47 kΩ

Analogue Input

4 x DIN/RCA pair, 1 x RCA pair, 1 x DIN (for Naim phono amplifier)

Audio Outputs

Fixed Line Outputs (Level)

130 mV, 600 Ω

Variable Line Outputs (Level)

775 mV, <50 Ω

Power Outputs

Naim phono amplifier

Audio Outputs

Speakers, Recording, Pre-amplifier and Variable Subwoofer

Other Outputs

Headphones, 1/4" jack

Speaker Outputs

Power Output

70 W/ch, 8 Ω

Connectivity

Remote Control

Infrared (RC5)

Remote Input

1 x 3.5 mm jack on rear (RC5 modulated/unmodulated)

Upgrades

1 x USB Type Mini-B

User Control

Front Panel

Volume control, seven matrix buttons

Power

Mains power

100V, 115V, 230V; 50 or 60Hz

Power Consumption (Idle)

20VA

Power Consumption (Max.)

290VA (Max.)

Physical

Dimensions (HxWxD)

70 x 432 x 301mm

Weight

8.4kg

Shipping Dimensions

200 x 590 x 500mm

Shipping Weight

10.35kg

Supplied with

NARCOM-4 Remote Control

Finish

Front

Brushed and black anodized

Case

Powder coated black
