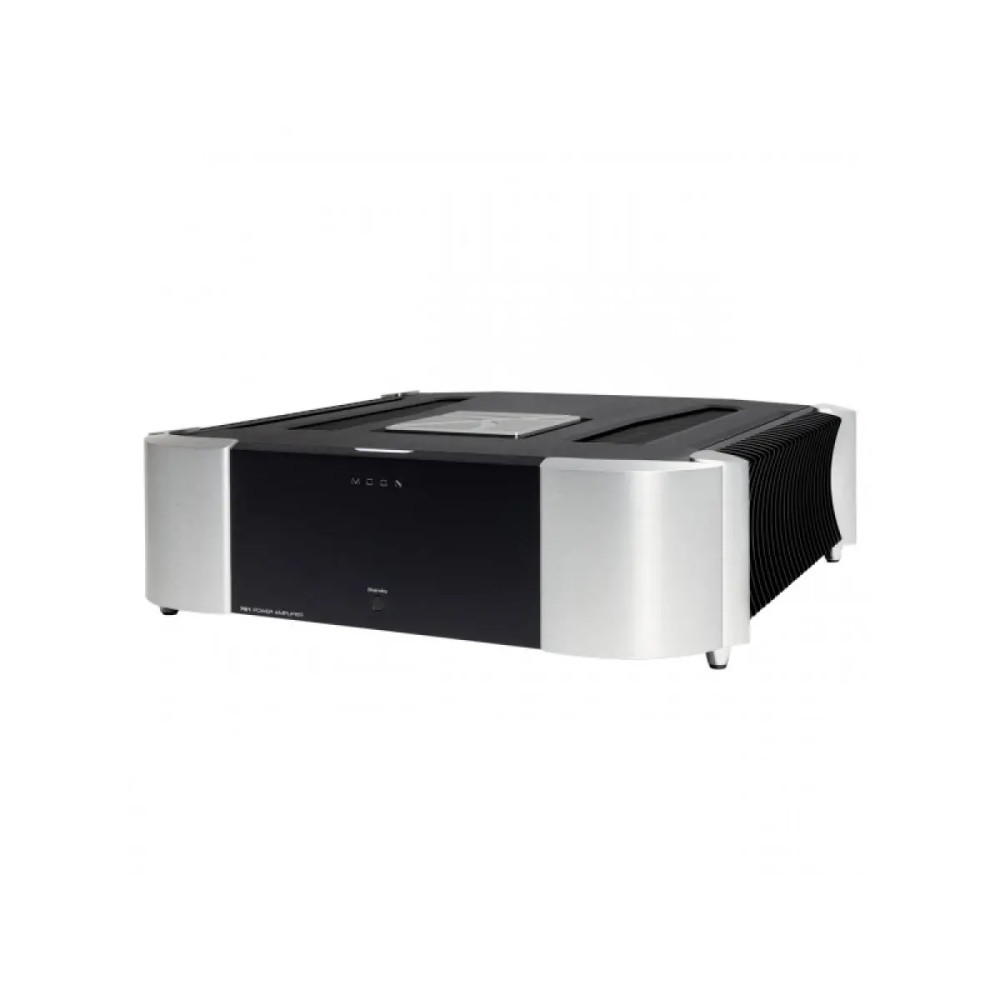

MOON 761 – High-end dual mono stereo power amplifier

The MOON 761 by Simaudio is a high-end stereo power amplifier engineered to deliver reference-level performance in the most refined hi-fi and high-end audio systems. Part of the prestigious North Collection, the MOON 761 combines power, speed, control and transparency within a fully balanced dual mono architecture capable of driving even the most demanding loudspeakers with absolute authority.

Developed using technologies derived from the Canadian manufacturer’s flagship models, the MOON 761 incorporates the sophisticated proprietary MDCA (MOON Distortion Cancelling Amplifier) circuitry, specifically designed to dramatically reduce noise and distortion without relying on conventional global feedback. The result is an exceptionally natural, fast and transparent musical presentation.

Thanks to its dual mono architecture, the MOON 761 delivers 200 watts per channel into 8 ohms and 400 watts per channel into 4 ohms, maintaining absolute bass control, exceptional microdynamic precision and outstanding tonal realism. The amplifier can also operate in bridged mono mode, producing 600 watts into 8 ohms for even greater performance capability.

The power supply employs two custom low-noise 700 VA toroidal transformers combined with 152,000 µF of total capacitance, ensuring massive current delivery, lightning-fast transient response and exceptional stability even at demanding listening levels.

The ultra-rigid mechanical construction, fully symmetrical internal layout and sophisticated cooling system minimise vibration, interference and background noise while preserving the purity of the audio signal.

During listening sessions, the MOON 761 delivers an expansive and holographic soundstage, deep and perfectly controlled bass, an incredibly natural midrange and refined, extended treble completely free from harshness. Its remarkable timing precision and ability to reveal ambience and micro-detail make this amplifier ideal for reference-grade high-end systems.

Manufactured in Canada to the highest construction standards, the MOON 761 represents the ultimate solution for audiophiles seeking absolute musicality, transparency and uncompromising loudspeaker control.

Key Features

• High-end dual mono stereo power amplifier
• Fully balanced architecture
• Proprietary MDCA technology
• No global feedback design
• 200 W per channel into 8 Ω
• 400 W per channel into 4 Ω
• Bridgeable mono operation up to 600 W into 8 Ω
• Dual low-noise 700 VA toroidal transformers
• 152,000 µF power supply capacitance
• Balanced XLR and single-ended RCA inputs
• MOONLink system integration
• High-end construction Made in Canada

Technical Specifications

• Type: dual mono stereo power amplifier
• Stereo power 8 Ω: 200 W per channel
• Stereo power 4 Ω: 400 W per channel
• Mono power 8 Ω: 600 W
• Configuration: fully balanced dual mono
• Technology: MDCA (MOON Distortion Cancelling Amplifier)
• Transformers: 2 x 700 VA low-noise toroidal transformers
• Power supply capacitance: 152,000 µF
• Frequency response: 2 Hz – 100 kHz (+0 / -3 dB)
• THD + Noise: 0.001%
• Signal-to-noise ratio: 117 dB
• Damping factor: 800
• Inputs: single-ended RCA, balanced XLR
• Standby power consumption: 1.25 W
• Dimensions: 48.1 x 14 x 44.5 cm
• Weight: 35 kg
• Manufacturing: Made in Canada

The MOON 761 is a stereo power amplifier designed to deliver absolute control, exceptional transparency and natural musicality, representing one of the finest high-end solutions available for reference hi-fi systems.
