SVS SOUND PC-2000 PRO

SVS PC-2000 Pro - 12" Down-Firing Cylindrical Active Subwoofer

The SVS PC-2000 Pro is a high-performance active subwoofer designed for listeners who want deep, powerful and precisely controlled bass without occupying excessive floor space. Its distinctive cylindrical MDF cabinet, combined with a newly developed 12-inch down-firing driver, the powerful Sledge STA-550D amplifier and advanced 50 MHz Analog Devices DSP, delivers outstanding low-frequency performance in an exceptionally space-efficient design.

The PC-2000 Pro is an excellent solution for both Hi-Fi stereo and Home Cinema systems. Its cylindrical architecture provides a smaller floor footprint than many conventional high-output subwoofers, while still allowing the system to reproduce frequencies well below 20 Hz with impressive authority and control.

12" Down-Firing High-Excursion Driver

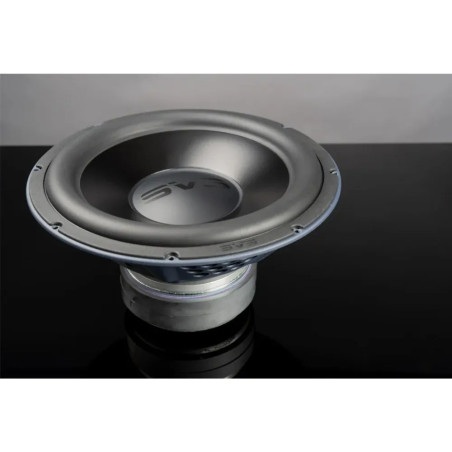

The heart of the PC-2000 Pro is a completely redesigned 12-inch down-firing driver, engineered to combine powerful bass output with precise transient response and excellent control.

The driver features a vented 1050 aluminium cone, chosen for its excellent stiffness-to-mass ratio. The proprietary high-excursion surround allows the cone to maintain highly accurate piston-like movement even during demanding passages.

The motor assembly uses a dual ferrite magnet structure capable of generating the force required to move large volumes of air while maintaining excellent control below 20 Hz. A dual-layer high-purity copper voice coil and ventilated 1008 steel U-yoke contribute to efficient thermal management during extended high-level operation.

Space-Saving Cylindrical Cabinet

One of the defining features of the SVS PC-2000 Pro is its cylindrical cabinet. Constructed from Medium Density Fiberboard (MDF), the enclosure incorporates an extra-thick front baffle and extensive internal bracing to create a rigid, low-resonance structure.

The cylindrical design provides a remarkably compact footprint compared with a conventional rectangular subwoofer delivering similar performance. This makes the PC-2000 Pro particularly attractive for rooms where floor space is limited.

Internal acoustic damping material further helps reduce unwanted cabinet coloration and resonances, allowing the driver to deliver cleaner and more accurate bass.

SVS SoundPath Isolation System

The PC-2000 Pro incorporates the SVS SoundPath Subwoofer Isolation System, featuring four elastomer feet designed to mechanically decouple the subwoofer from the floor.

This solution helps reduce the transmission of vibrations into the room structure while contributing to greater clarity and definition in the low frequencies.

550 W RMS Sledge STA-550D Amplifier

The PC-2000 Pro is powered by the Sledge STA-550D Class D amplifier, delivering 550 watts RMS of continuous power and more than 1500 watts of peak power.

The discrete 25 A / 600 V MOSFET output stage is engineered to handle high current with excellent efficiency and low EMI emissions. The substantial power reserve allows the 12-inch driver to reach its full excursion capability while maintaining dynamics, precision and control.

50 MHz Analog Devices DSP

The sophisticated 50 MHz Analog Devices Audio DSP uses 56-bit double-precision filtering to provide precise control over the subwoofer's response and integration with the listening environment.

The DSP allows adjustment of crossover, phase, polarity and Room Gain, together with a three-band parametric equalizer. These functions make it possible to compensate for room-related peaks, cancellations and other acoustic problems with considerable precision.

Standard and Sealed Modes

The PC-2000 Pro provides two different operating modes: Standard and Sealed. Standard mode prioritizes maximum low-frequency extension, while Sealed mode provides a more controlled response that can be useful depending on the room and listening preferences.

In Standard mode, the frequency response extends from 16 Hz to 290 Hz ±3 dB. In Sealed mode, the response is 17 Hz to 290 Hz ±3 dB, with useful low-frequency extension down to approximately 15 Hz.

SVS Smartphone App Control

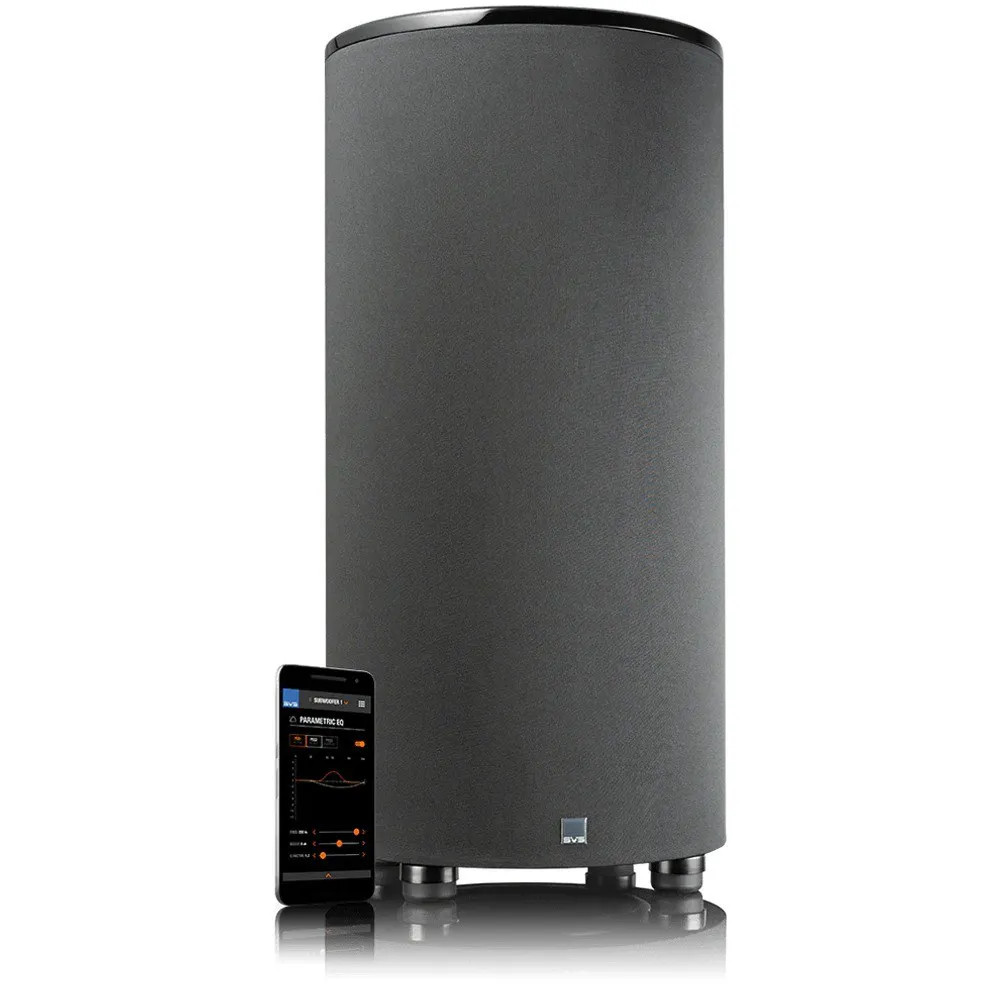

The SVS Smartphone App turns a smartphone or tablet into a comprehensive remote control for the PC-2000 Pro. Bluetooth connectivity allows all the main DSP adjustments to be performed directly from the listening position.

The application is compatible with iOS, Android and Amazon devices and allows users to control volume, DSP parameters, Room Gain and customizable presets. Bidirectional communication keeps the settings synchronized between the app and the subwoofer's physical interface.

Hi-Fi and Home Cinema Integration

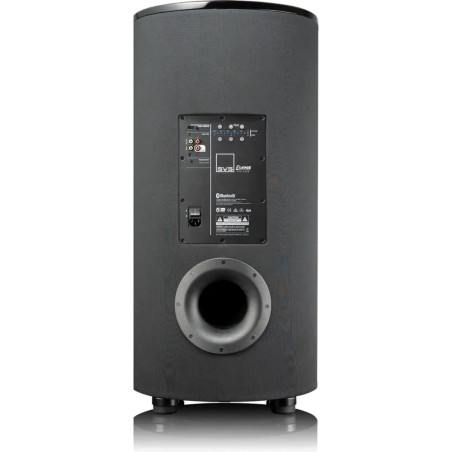

The PC-2000 Pro features stereo RCA inputs and outputs, making it suitable for integration into both dedicated stereo Hi-Fi systems and Home Cinema installations.

A 3-12 V AC/DC trigger is also provided for automatic system integration, while the USB port can be used for service and to power compatible accessories such as the optional SVS SoundPath wireless adapter.

Key Features

• High-performance cylindrical active subwoofer.
• 12-inch down-firing high-excursion driver.
• Vented 1050 aluminium cone.
• Dual ferrite magnet motor structure.
• Sledge STA-550D Class D amplifier.
• 550 watts RMS continuous power.
• More than 1500 watts peak power.
• 50 MHz Analog Devices Audio DSP.
• 56-bit double-precision DSP filtering.
• 16-290 Hz ±3 dB frequency response in Standard mode.
• 17-290 Hz ±3 dB frequency response in Sealed mode.
• Useful low-frequency extension down to 15 Hz.
• Three-band parametric EQ.
• Crossover, phase, polarity and Room Gain adjustment.
• Three customizable presets.
• Bluetooth control via SVS Smartphone App.
• Compatible with iOS, Android and Amazon devices.
• Intelligent Control Interface.
• Rigid cylindrical MDF cabinet.
• Extra-thick front baffle.
• Extensive internal bracing.
• Internal acoustic damping material.
• Integrated SVS SoundPath Subwoofer Isolation System.
• Elastomer isolation feet.
• Stereo RCA inputs and outputs.
• 3-12 V AC/DC trigger.
• USB port for service and compatible accessories.
• Piano Gloss Black finish.
• Ideal for Hi-Fi stereo and Home Cinema systems.

Why Choose the SVS PC-2000 Pro

The SVS PC-2000 Pro is an excellent choice for anyone looking for high-end subwoofer performance while needing to keep the floor footprint under control. Its cylindrical cabinet allows substantial acoustic output without the large rectangular footprint typically associated with high-output subwoofers.

The 12-inch driver, 550 W RMS amplifier and extension down to approximately 15 Hz provide deep and physically engaging bass, while the sophisticated DSP allows the subwoofer to be precisely optimized for the listening environment.

In a stereo Hi-Fi system, the PC-2000 Pro can add depth, weight and extension to the lowest frequencies while maintaining excellent articulation. In Home Cinema applications, its high output capability and extreme low-frequency extension provide the impact and realism required for demanding soundtracks.

Technical Specifications
