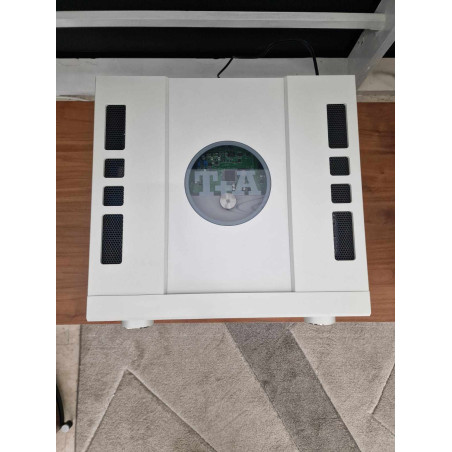

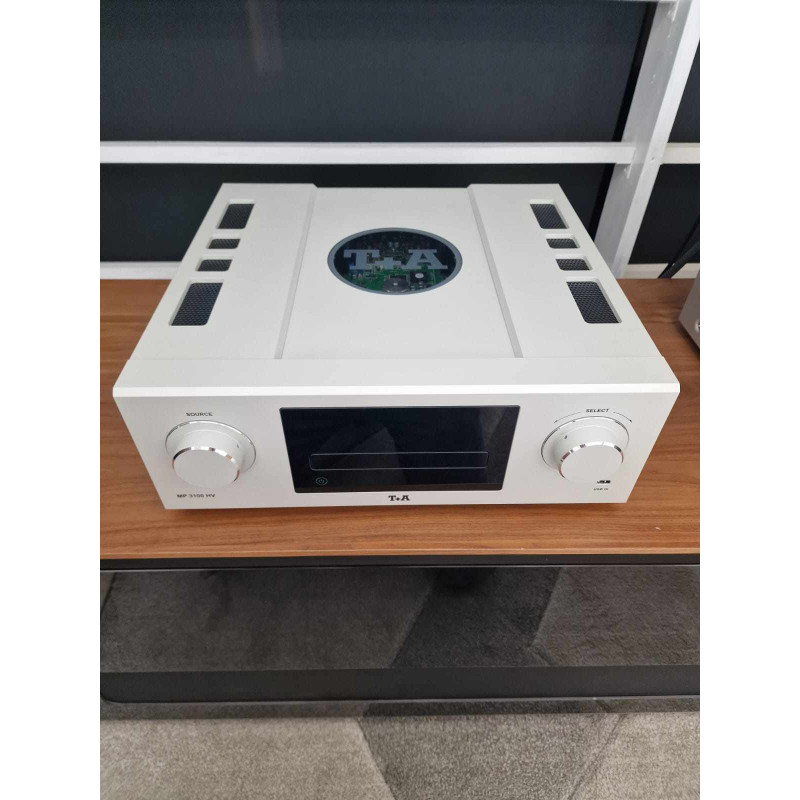

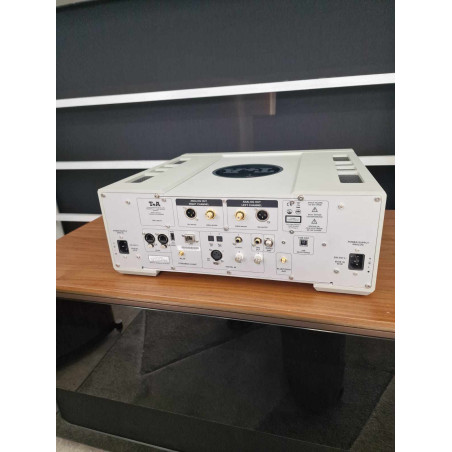

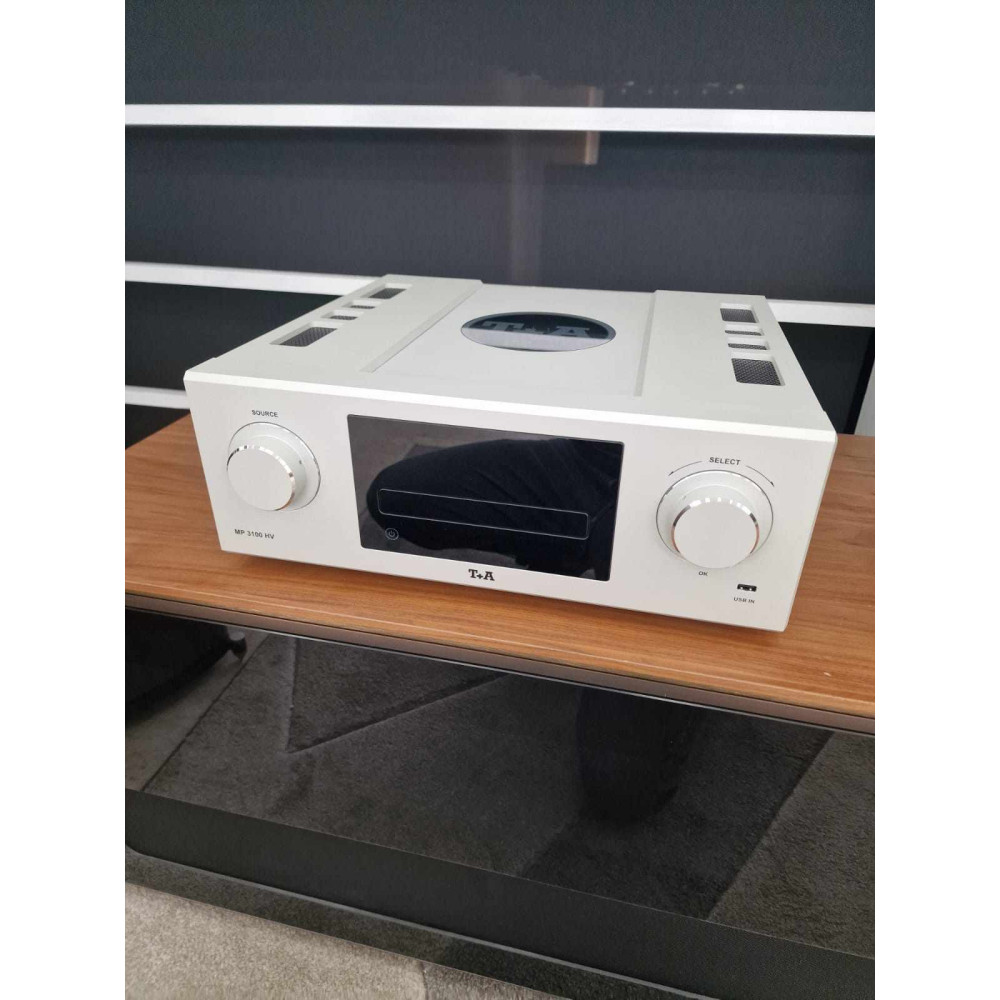

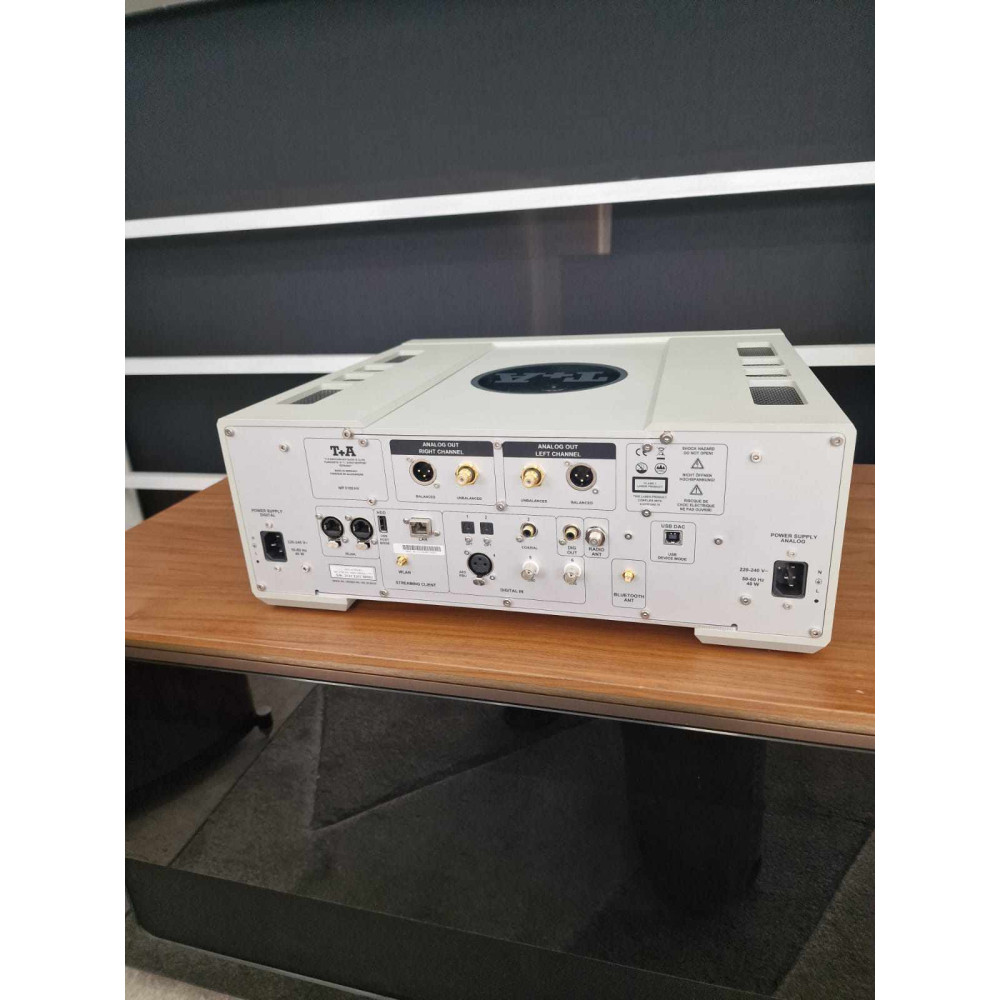

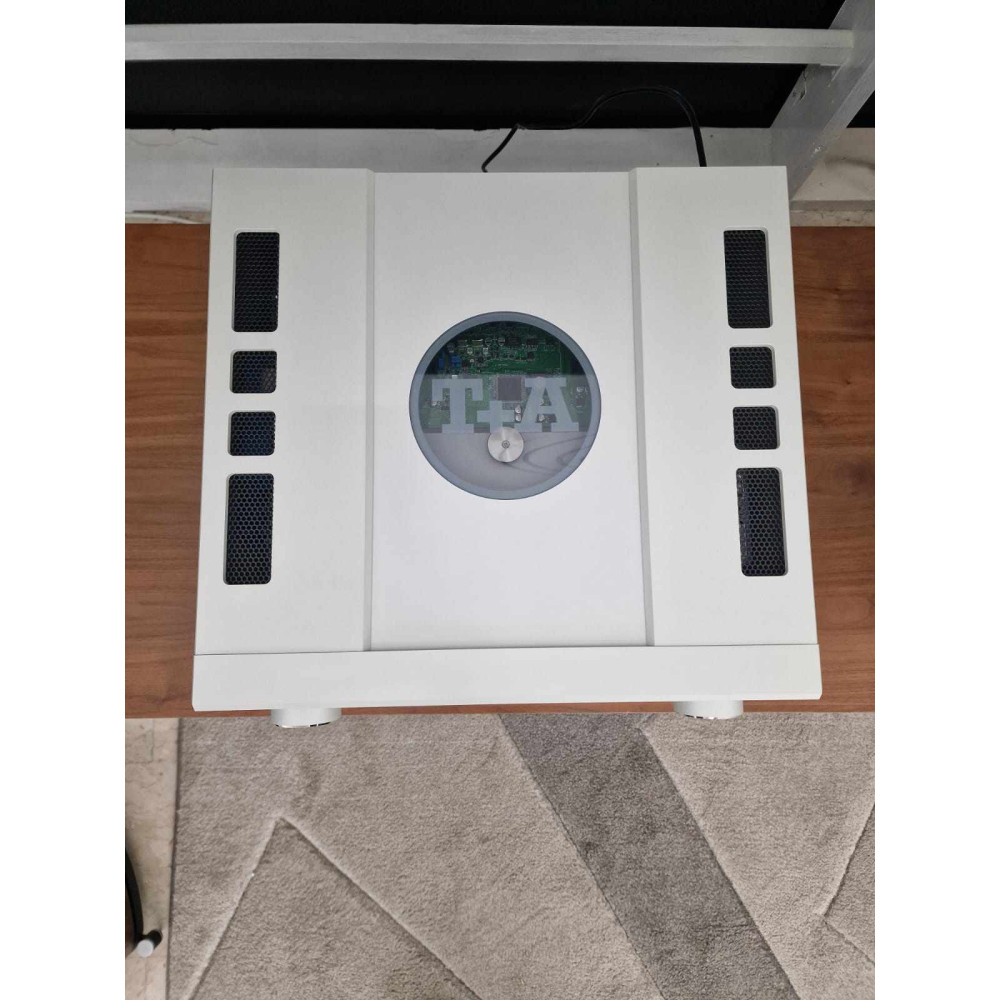

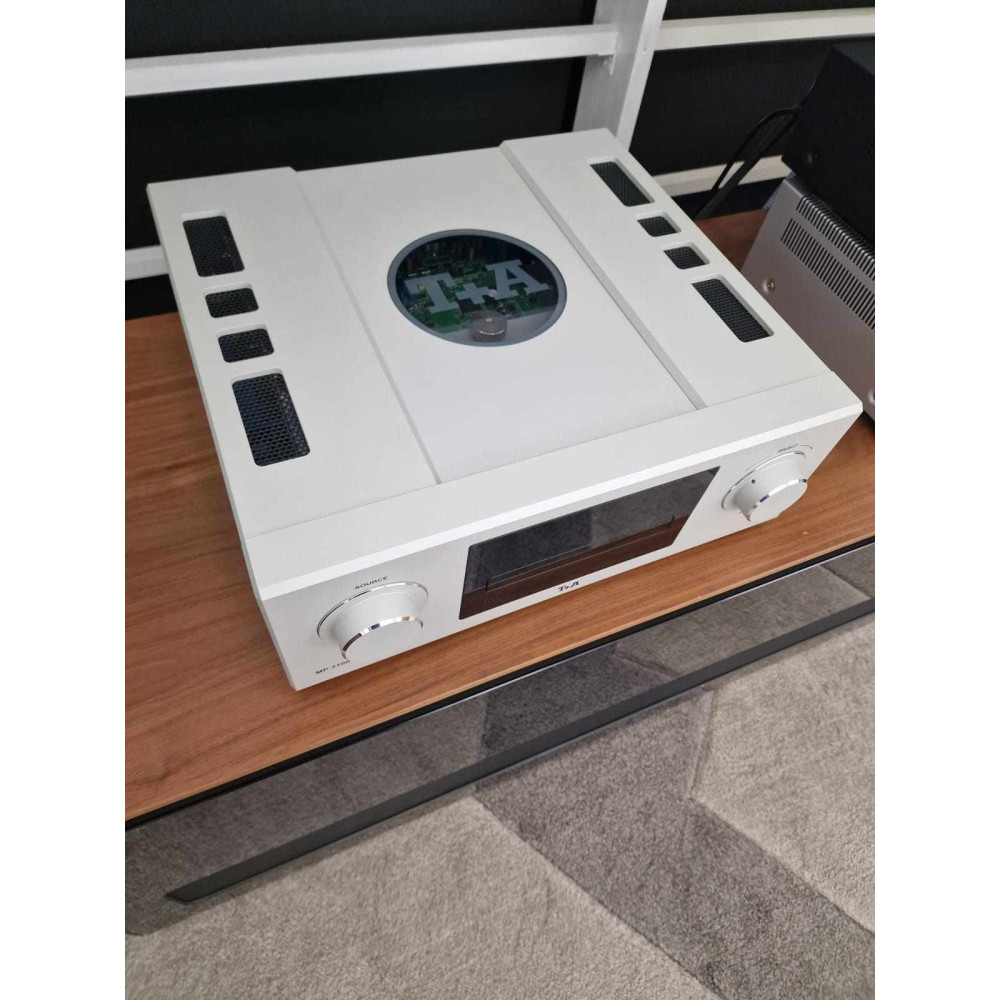

T+A MP 3100 HV - EX DEMO

*PRODOTTO EX-DEMO. CONDIZIONI OTTIME. 2 ANNI DI GARANZIA UFFICIALE*

Lettore streaming multi sorgente in grado di eseguire l’elaborazione completa del segnale dei dati bitstream DSD oltre all’elaborazione dei dati PCM secondo standard impeccabili. L‘unità SACD, con il decoder, è in grado di leggere i dischi CD (PCM 44.1 kSps) e SACD (DSD 64 2.8 MHz) alla massima qualità possibile. I dati PCM vengono convertiti utilizzando il convertitore quadruplo differenziale per tutta l’elaborazione del segnale digitale. I dati DSD sono gestiti dall’esclusivo convertitore DSD analogico a 1 bit del PDP 3000 HV, che elabora i dati DSD in forma nativa.

Specifications

SACD drive unit

SACD drive unit High precision linear tracking drive Double-Lasersystem: SACD: 650 nm, CD: 785 nm

Formats SACD Stereo, CD, CD-R, CD-RW, CD Text

Frequency range and dynamics

CD: 2 Hz – 20 kHz / 100 dB,

SACD: 2 Hz – 44 kHz / 110 dB

Streaming Client

Formats / Standards MP3, WMA, AAC, OGG Vorbis, FLAC, WAV, AIFF, ALAC / UPnP AV

Data rates PCM 32...192 kHz,16/24 Bit; MP3 bis 320 kBit, constant and variable Data rate

Music services Tidal, qobuz. Deezer, Roon Ready (Subscription required)

Features Gapless Playback for MP3 (Lame), WAV, FLAC. T+A MusicNavigator App for iOS and Android)

Interfaces LAN: Fast Ethernet 10/100 Base-T, WLAN: 802.11 b/g/n

Tuner

Internet Radio Airable Internet Radio Service (> 11000 Stations)

FM, FM-HD 87,5 - 108 MHz; sensitivity 1 µV; S/N > 65 dBA

DAB, DAB+ 168 -240 MHz (Band III); sensitivity 2,0 µV, S/N > 96 dBA.

Features RDS/RDBS, station name (PS), programme type (PTY), radiotext (RT), time

Bluetooth A2DP (Audio), AVRCP 1.4 (Control) / aptX®, MP3, SBC.

Connections

Outputs analogue Co-axial (RCA) | Balanced (XLR) 2,5 Veff / 50 Ohm | 5,0 Veff / 50 Ohm

Output digital 1 x coax, IEC 60958 S/P-DIF (LPCM)

Digital inputs (digital connecting board)

1x AES-EBU 192 kSps /24 bit

5x S/P-DIF: 1x standard coax, 2 high quality BNC 192 kSps/24 bit and 2 optical TOS-Link 96 kSps /24 bit.

1x USB: Device-Mode up to. 384 kSps (PCM) and DSD512*, supports asynchronous data transfer

2 x USB Master-Mode for USB-Mass storage (Stick or HDD)

* DSD256 and DSD512 only with a Windows PC with appropriate driver installed

D/A Converter

PCM Double-Differential-Quadruple-Converter with four 32-Bit Sigma Delta D/A converters per channel. 352.4 / 384 kSps conversion rate.

DSD T+A True-1Bit DSD D/A-Converter native bitstream

Upsampling (PCM) T+A Digital Signal Processor - synchronous upsampling with 4 selectable oversampling algorithms: FIR short, FIR long, Bezier/IIR, Bezier

Analogue filter Phase-linear Bessel filter 3rd Order with 60 or 120 kHz cut off frequency

Frequency responce

PCM 44.1 kSps: 2 Hz - 20 kHz

PCM 48 kSps: 2 Hz - 22 kHz / DSD 64: 2 Hz - 44 kHz

PCM 96 kSps: 2 Hz - 40 kHz / DSD 128: 2 Hz - 60 kHz

PCM 192 kSps: 2 Hz - 80 kHz / DSD 256: 2 Hz - 80 kHz

PCM 384 kSps: 2 Hz - 100 kHz / DSD 512: 2 Hz - 100 kHz

Total harmonic distortion < 0,001 %

Signal / noise ratio > 116 dB

Channel separation > 110 dB

Mains 2 x 110-120 V or 220-240 V, 50-60 Hz, 2 x 40 W

Standby < 0,5 W

Dimensions (H x W x D) / Weight 17 x 46 x 46 cm / 26 kg

Remote control F 3100, IR radio remote control T+A MusicNavigator APP

Accessories WLAN aerial, BNC / RCA adapter

Optional Accessories

Power Three HD (Carbon) | Power Bar | Audio Quad (Carbon) | HV-Individual finish (Individual colours on request)
