EVERSOLO DAC-Z10

The Eversolo DAC-Z10 is a high-end digital-to-analog converter that embodies the perfect combination of advanced technology and sonic purity.

Crafted from aircraft-grade aluminum alloy and meticulously crafted, the Eversolo DAC-Z10 represents a new frontier in high fidelity: a component capable of delivering musicality, precision, and emotional engagement like few others in its class.

Eversolo DAC-Z10 – An engineering masterpiece for authentic sound

There are products that don't just sound good, they redefine the very idea of ​​what it means to listen. The Eversolo DAC-Z10 belongs to this select category: a digital-to-analog converter designed with a single goal—to transform every bit of audio into pure emotion.

Every element, from the power supply circuitry to the clock management, has been conceived with almost artisanal rigor to reduce noise, minimize interference, and deliver authentic, transparent, and three-dimensional sound.

At the heart of the design is the revolutionary Eversolo FIA™ (Fully Isolated Architecture), a platform that completely separates the digital and analog domains, ensuring complete electrical isolation.

Each section—left channel, right channel, and system—has its own dedicated linear power supply, with three ultra-low-noise toroidal transformers that maintain stable voltage down to a noise level of less than 42 μV.

This configuration creates a pure operating environment, free of cross-interference, allowing each channel to express its full dynamic potential.

The Eversolo DAC-Z10's conversion section uses two independent AK4191 + AK4499 modules, one for each channel, in a balanced dual-mono architecture.

The result is fully symmetrical decoding, supported by AKM's Velvet Sound™ technology, which combines accuracy and musicality.

Downstream, a fully balanced preamplifier with a dual-channel R2R volume network maintains signal purity at every listening level, from the softest whisper to maximum volume.

Together, these elements produce an exceptional signal-to-noise ratio and one of the lowest THD+N distortions in its class, delivering a deep, clear, and natural soundstage.

“The Z10 DAC doesn't just convert the signal:

it sculpts it with the precision of a sonic craftsman,

delivering fluid,

deep, and three-dimensional musicality

that transcends mere digital reproduction.”

Absolute Precision: Eversolo Precision Core™ and Perfect Timing

Every musical note lives in time, and temporal precision is the foundation of high fidelity.

The Eversolo DAC-Z10 achieves this with the Eversolo Precision Core™ system, which integrates a temperature-controlled crystal oscillator (OCXO) and PLL (Phase-Locked Loop) technology to ensure stable and consistent FPGA clock reconstruction.

This system, working in synergy, eliminates jitter distortion, ensuring that every digital pulse arrives exactly when it's supposed to.

The DAC also supports external high-precision 10 MHz and 25 MHz clocks, with selectable 50 Ω or 75 Ω impedances, for integration with professional-grade master generators.

The entire digital section is completely isolated thanks to the Fully Isolated Architecture, which prevents electrical contamination between connected devices.

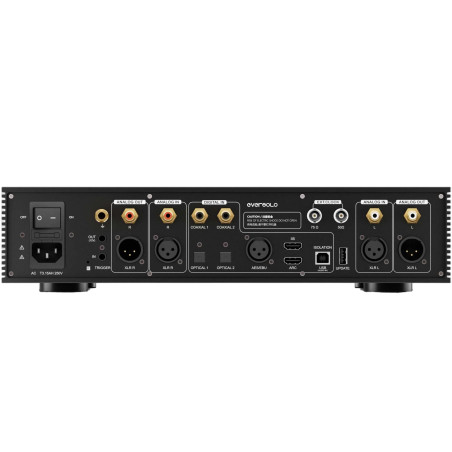

The Eversolo DAC-Z10 offers a world-class set of connections:

IIS input with 8 switchable modes, capable of handling up to 768 kHz / 32-bit PCM and native DSD512.

Isolated AES/EBU for balanced, interference-free transmission.

Dual optical and coaxial inputs, up to 192 kHz/24-bit and DSD64 DoP.

Isolated USB Audio with multi-core processor for high-speed lossless transmission.

Bluetooth with Qualcomm QCC5125 chip, compatible with major high-quality audio codecs.

Each input is engineered to ensure clean transmission, perfect synchronization, and a complete absence of digital noise, bringing signal purity to levels rarely achieved in a home DAC.

A balanced and dynamic analog heart

On the analog front, the Eversolo DAC-Z10 features a fully balanced preamplification section, built with the same dual-mono philosophy as the digital section.

It supports XLR and RCA outputs with selectable gain up to +10 dB, ensuring compatibility with any type of amplifier and audio configuration.

Volume control is achieved via an ultra-precise R2R resistor network, which maintains signal linearity even at low levels.

Every volume adjustment is completely analog, with no digital inputs, preserving the naturalness and microdynamics of the original signal.

The DAC-Z10's built-in headphone amplifier further demonstrates its versatility.

Featuring a 6.35 mm output and automatic impedance detection, it delivers 1 W into 16 Ω and 32 Ω, and 160 mW into 300 Ω, automatically adapting to any headphone type.

Gain settings (High, Medium, Low) allow for optimal performance with both low-impedance models and planar headphones with high current demands.

The addition of a dedicated ground terminal and the ability to adjust the L/R balance up to ±15 dB allow for extreme customization of the listening experience.

Furthermore, with HDMI ARC/eARC support, the DAC-Z10 integrates easily with TVs and home theater systems, delivering cinematic sound with the precision of a hi-fi DAC.

Advanced listening experience and control

The Eversolo DAC-Z10 experience is not just sonic, but also tactile and visual.

The body is crafted from CNC-machined aircraft-grade aluminum, a material that ensures structural rigidity and electromagnetic isolation.

Every surface is meticulously finished, conveying an immediately perceptible sense of solidity and refinement.

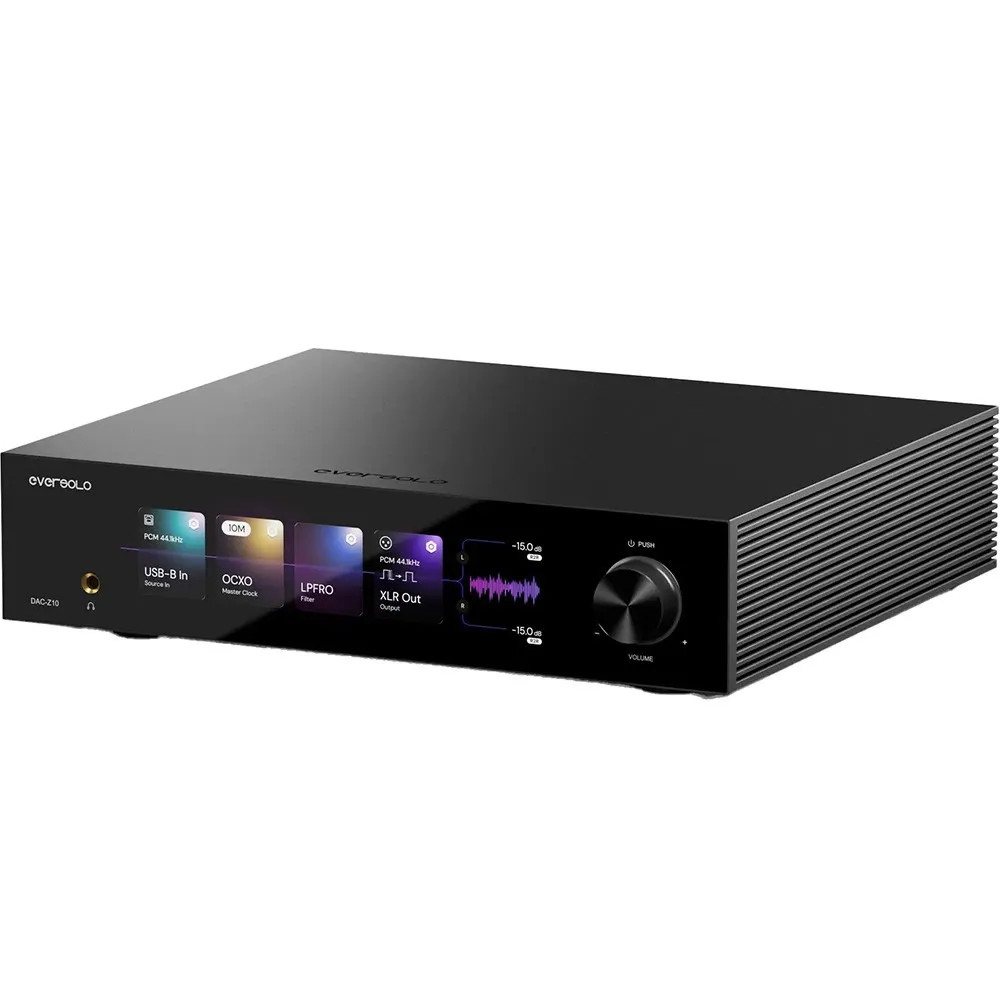

The front panel is dominated by a large, clear and responsive 8.8" IPS display, allowing you to control the entire system via an intuitive touchscreen interface.

The Routing Information Interface allows the user to view the signal path in real time: source, format, clock, filters, and active channels, all represented with graphic clarity and technical precision.

The DAC-Z10 also offers an emotional aesthetic component: vintage VU meters, dynamic spectra, and color displays synchronized with the music, transforming listening into a multisensory experience.

The six digital filter curves allow you to customize the timbre to suit your tastes—softer and more musical, or more analytical and detailed.

Two XLR polarity modes are also available, ensuring maximum electrical compatibility with complex systems and guaranteeing faithful and consistent reproduction of the audio signal.

All parameters can also be managed via a dedicated mobile app, which replicates the front panel functions and allows complete remote control of the system.

Connections, integration, and philosophy Construction

With a level of engineering typical of professional audio, the Eversolo DAC-Z10 stands out for its comprehensive connectivity and attention to construction details.

In addition to the digital and analog inputs already mentioned, it features TRIGGER IN/OUT for synchronized control with other components, avoiding current spikes at power-on.

The implementation of the Grounding Post allows noise to be discharged to ground, maintaining a perfectly stable reference voltage.

The Fully Isolated Architecture (FIA™) concept goes beyond simple circuit separation: it is a construction philosophy that aims to preserve signal integrity at every stage of the audio path.

The combined use of independent power supplies, multiple shielding, and balanced topologies allows the DAC-Z10 to achieve exceptional sonic transparency, combined with absolute operational stability.

The compact and rigid chassis is both elegant and functional: the brushed aluminum, minimalist design, and perfect proportions make it an object that enhances any hi-fi system or home environment.

And, like all Eversolo products, the The DAC-Z10 is designed to last, maintaining consistent and reliable performance even after years of use.

In short, the Eversolo DAC-Z10 represents the ideal synthesis of engineering precision and musical sensitivity.

It is a reference-level DAC, capable of combining analog warmth, digital control, and refined design in a single, extraordinary listening instrument.

TECHNICAL SPECIFICATIONS

Model: Eversolo DAC-Z10

Display: 8.8" IPS touchscreen

Chassis Material: Aluminum alloy

Main Processor: DCP8568

DAC:

Left Channel: AK4191 + AK4499

Right Channel: AK4191 + AK4499

Audio Processor: Multi-core USB Audio Processor

Operational Amplifier Chip (OPA): OPA1612

Power Supply: Three ultra-low noise linear power supplies

Digital Inputs

Bluetooth Audio Input:

Qualcomm QCC5125 module, Bluetooth 5.0, compatible with SBC and AAC protocols

USB-B Audio Input:

Compatible with Windows 10 and later, macOS, Android, and iOS

Supports native DSD512 and PCM 768 kHz / 32-bit

IIS Input:

8 configurable modes, up to DSD512 / PCM 768 kHz / 32-bit

AES/EBU Input:

Up to PCM 192 kHz / 24-bit or DSD64 DoP

Optical Inputs (x2):

Up to PCM 192 kHz / 24-bit or DSD64 DoP

Coaxial Inputs (x2):

Up to PCM 192 kHz / 24-bit or DSD64 DoP

ARC (Audio Return Channel) Input:

Up to PCM 192 kHz / 24-bit

Analog Inputs

Balanced: XLR

Unbalanced: RCA

Analog Outputs

Pre-Outs: XLR (balanced) and RCA

Headphone Output: 6.35 mm jack Single-ended

External Clock Input:

Supports 10 MHz / 25 MHz with 50 Ω or 75 Ω impedance

Recommended Headphone Impedance:

16–300 Ω

Low Gain: 16–32 Ω

High Gain: 32–300 Ω

USB Port for Firmware Updates: USB 2.0 x 1

Power Supply: AC 110–240V, 50/60Hz

Rated Power Consumption: 32 W

Control Modes:

Built-in Touchscreen

Dedicated Remote Control

Mobile App Control

Graphical Interface:

Signal Path Display

Vintage VU Meter and Dynamic Spectrum

Filter Selection and L/R Balance

Dimensions (W × D × H): 365 x 310 x 88 mm

Material: CNC-machined aircraft-grade aluminum

Included Accessories

Remote Control ×1

Power Cord ×1

USB Data Cable ×1

USB Flash Drive (for Firmware Update) ×1

Trigger Cable ×1

Polishing Cloth ×1

User Manual ×1
